10. Maintenance

10.20 CPU Module

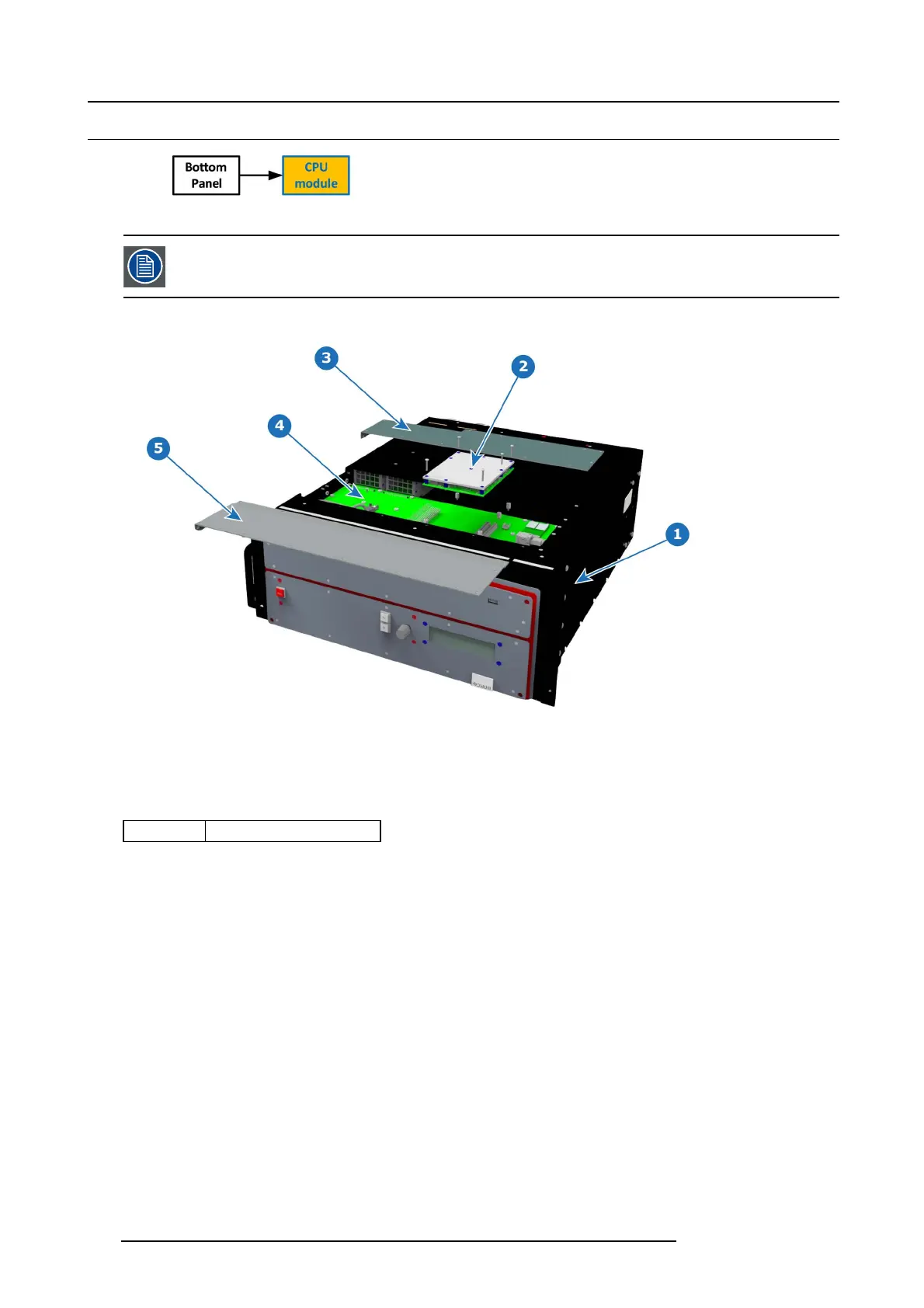

Image 10-47

Before you proceed removing the CP U module you need to remove the Bottom Panel as outlined in the related

procedure.

Overview

Image 10-48

1 Chassis

2 CPU Module

3 Bottom Panel P art 1

4 System Card.

5 Bottom Panel P art 2

Concerned parts

R767264K

CPU module

Necessary tools

1 x Phillips Screwdriver #2

How to remove the CPU module

1. Remove the ﬁve screws that attach CPU module to the s ystem ca rd.

2. Carefully remove the CPU module by lifting it up.

242

R5905948 E2 12/12/2014
