10. Maintenance
10.13 Front Panel Mount

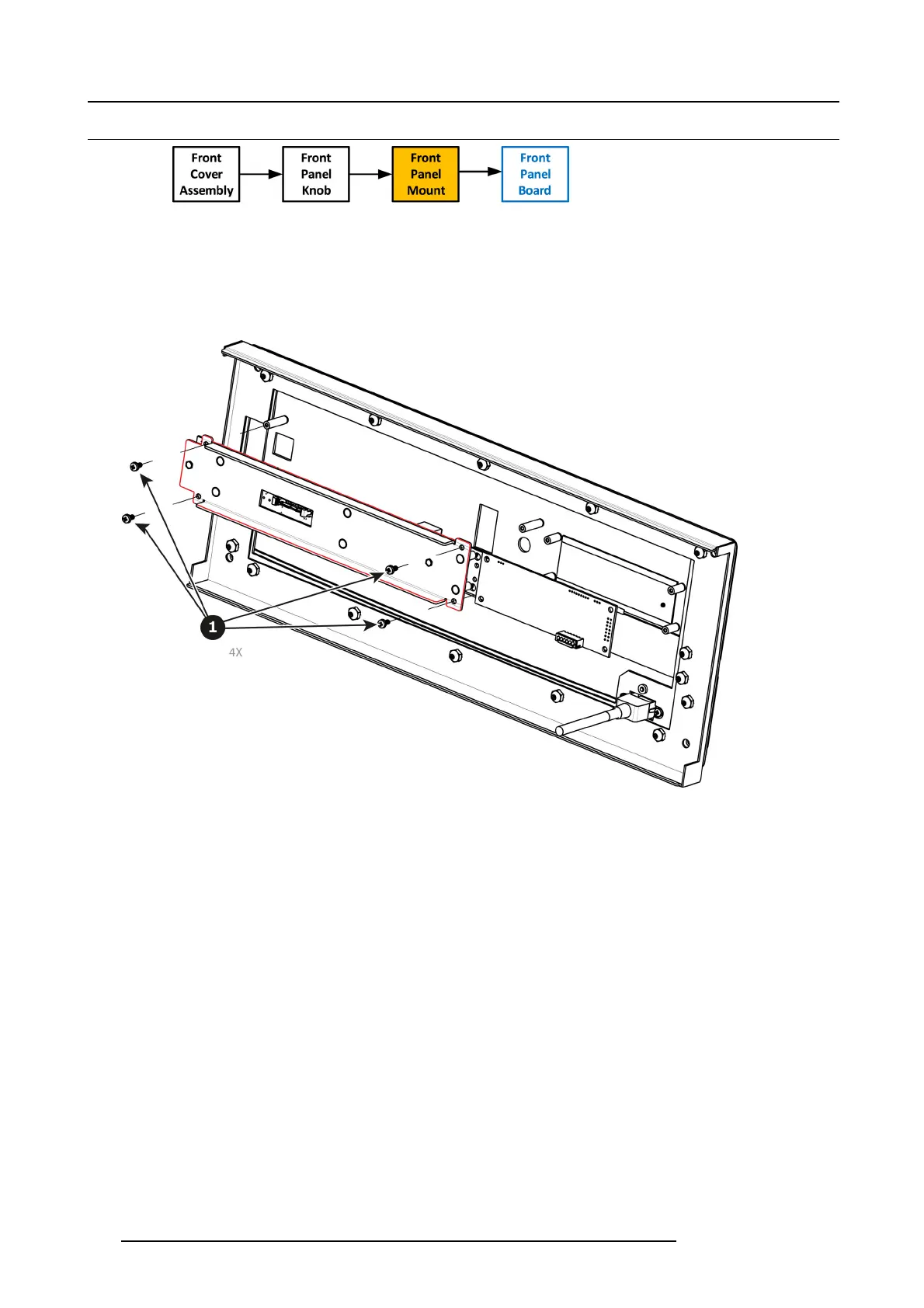

Image 10-31
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Front Panel Mount
1. Turn the Front Cover over and remove the four screws (4-40X.25) that secure the co ntrol panel mount to the front panel.
Image 10-32
How to install the Front Panel Mount
To install the Front Panel Mount follow the sam e procedure in the reverse o rder.
232
R5905948 E2 12/12/2014
