10. Maintenance
10.33 Front Rack-Ears
Image 10-89
Concerned parts
R767268K Rack Ears kit
Necessary tools
1 x Phillips Screwdriver #2
How to remove Side R ack-Ears
1. Loosening and removing the eight (four on each side) pan head screws that secure the brackets to the chassi
s sides.

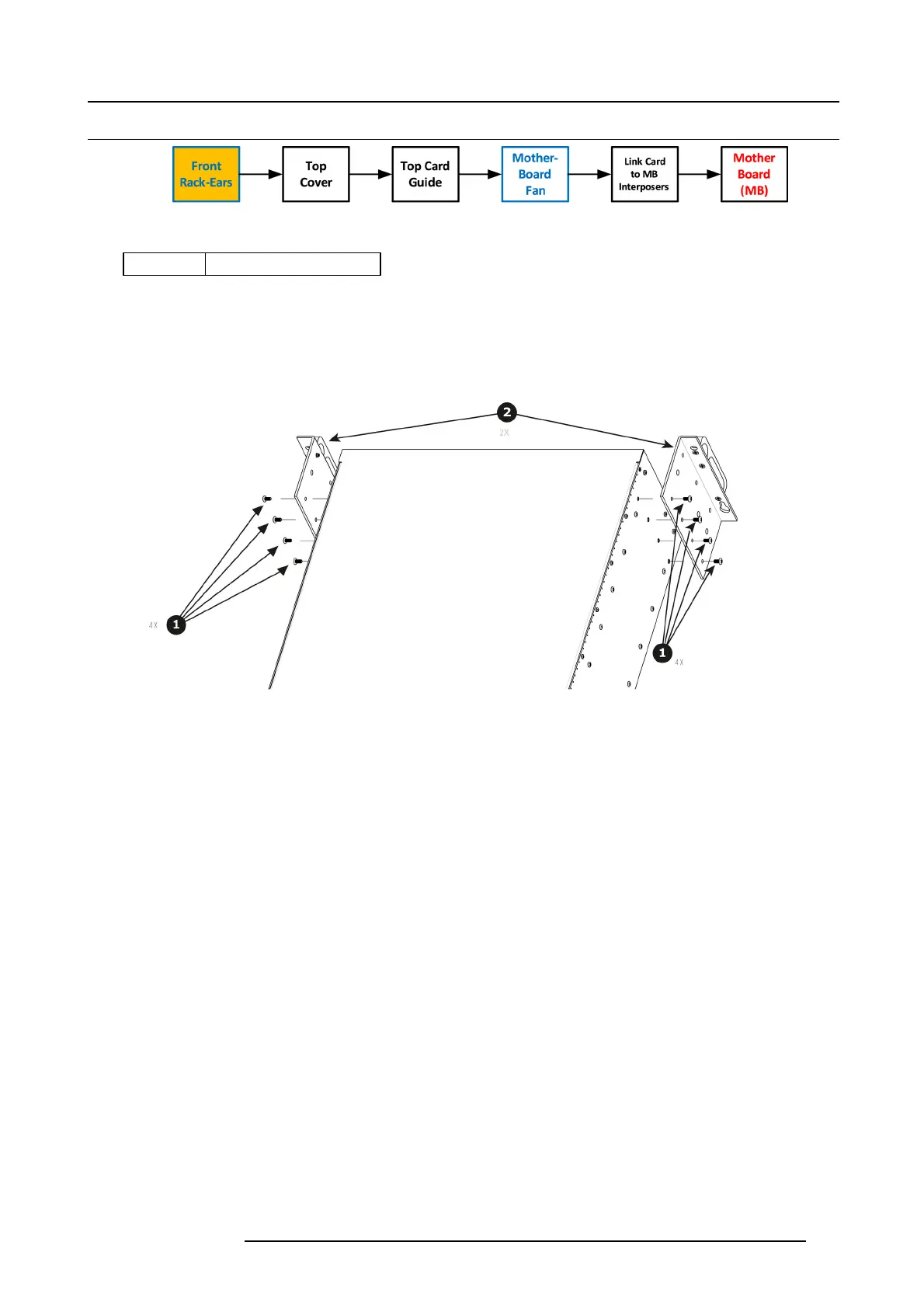

Image 10-90
2. Remove the Rack-Mount Brackets from the Chassis.
How to install Side Rack-Ears
To install the Side Rack-Ears follow the sam e procedure in the reverse order.
R5905948 E2 12/12/2014
273
