10. Maintenance
10.6 Fron t Cover Assembly
Image 10-8

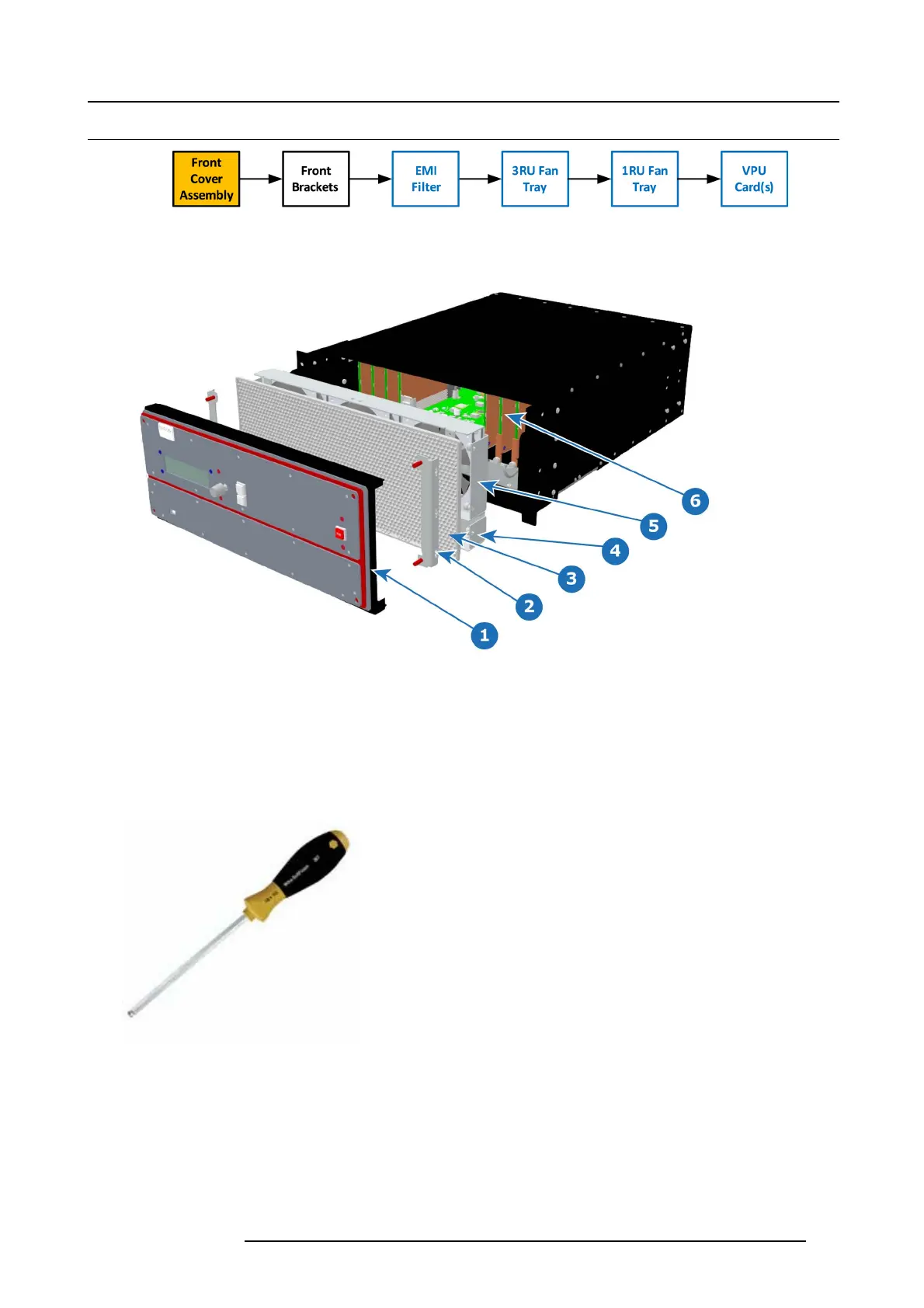

Overview
Image 10-9
1 Front Cover Assem bly
2 Front Brackets
3 EMI Filter
41RUFanTray
53RUFanTray
6VPUCards
Necessary tools
1 x Screwdriver HEX 0.05" 7 .05" (
Provide by Barco in the original package).
Image 10-10
How to remove t he Front Cover Assembly
1. Use the Hex screwdriver to remove the 4 screws (Hex 6-32x.25) that attach the front cover to the brackets located behind it.
Note: the standoffs go through the holes in sheet metal to properly align the front enclosure.
R5905948 E2 12/12/2014
221
