10. Maintenance
10.9 3RU Fan Tray

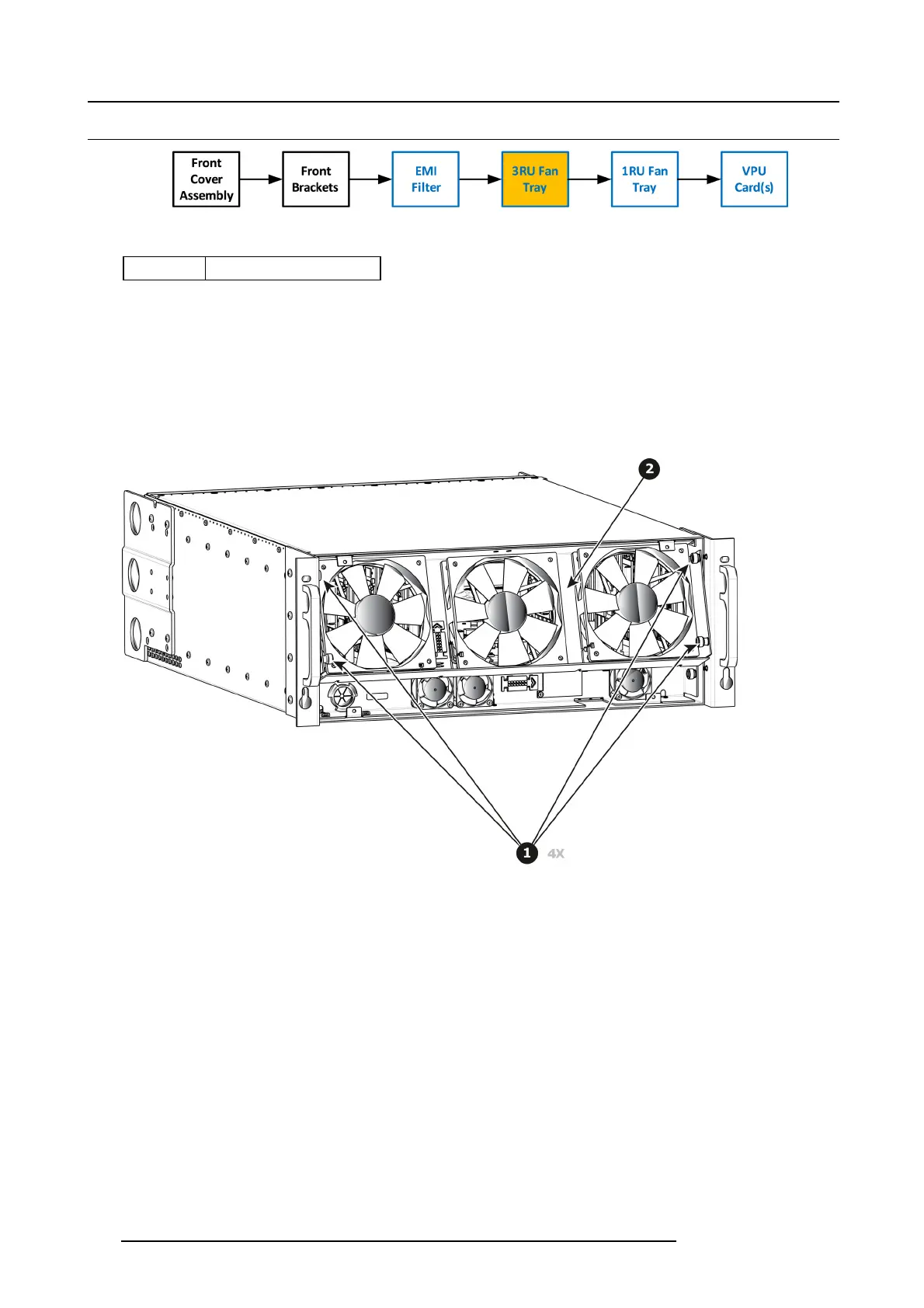

Image 10-18
Concerned parts
R767271K 3RU Fan Tr ay
Necessary tools
1 x Phillips Screwdriver #2 ( optional).
How to remove the 3RU Fan Tray
1. Loosen and unscrew the 4 thumbscrews holding the 3RU fan tray to the chassis.
Note: You m ay need a screwdriver if the thumbsc rews are very tight.
2. Pull the tray out.
Note: You need to tilt the tray and maneuver it to go around the dimp les located on the side of the chassis.
Image 10-19
How to install the 3RU Fan Tray
Follow t he same pr ocedure in the reverse order and in addition per form the following:
1. Ensure that the bottom slots at the bottom of the tray align with the pins located on the bracket in the chassis.
2. Make sure that the connector located at the b ack of the tray is aligned to the connector located on the bracket behind it.
3. Push so that the two connectors mate.
226
R5905948 E2 12/12/2014
