10. Maintenance
10.4 Rear I/O and Link C ards

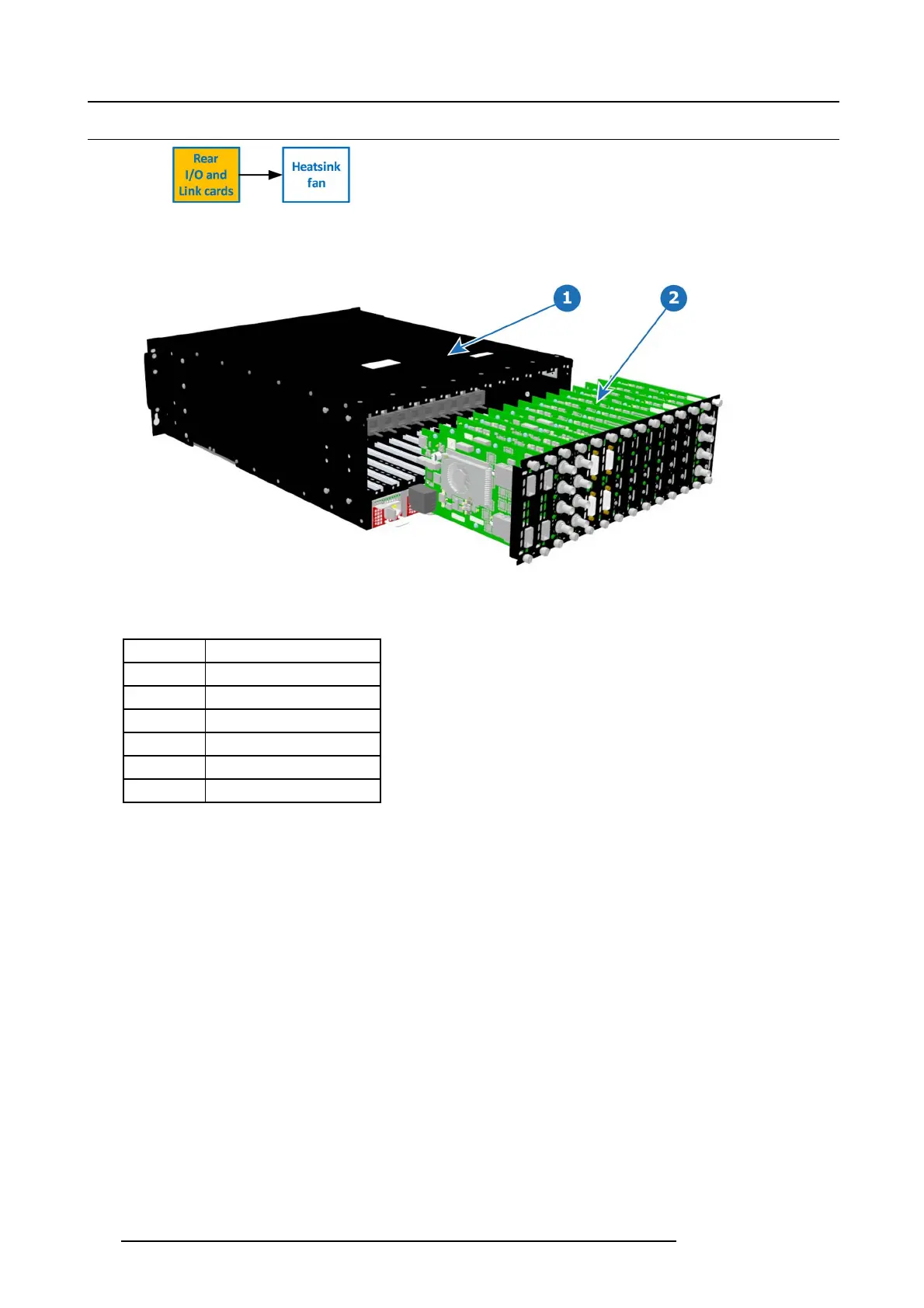

Image 10-3
Overview
Image 10-4
1 Chassis
2 I/O and Link Cards
Concerned parts
R9004740 DVI Input
R9004741
SDI O utput
R9004742
SDI In put
R9004743
HDMI Output
R9004744
DP/HDMI Input
R9004745
DVI Output (*)
R9004746
Link Card
(*) Not available in release 1)
Necessary tools
Phillips S crewdr iver #2.
Howtoremoveacard
1. Locate the card you wish to replace.
Note: The re are 14 card s lot s. The first slot on the left is slot 1 and the last slot on the most right position is 14.
2. Loosen and unscrew the top and bottom thumbscrews that are holding the ca rd to the c hassis.
3. Gently pull the c ard out o f its slot.
Tip: You may need to wobble it a little bit up or down to loosen it from the ca rd guides a s you are pulling out.
218 R5905948 E2 12/12/2014
