10. Maintenance

10.22 System-Power Board

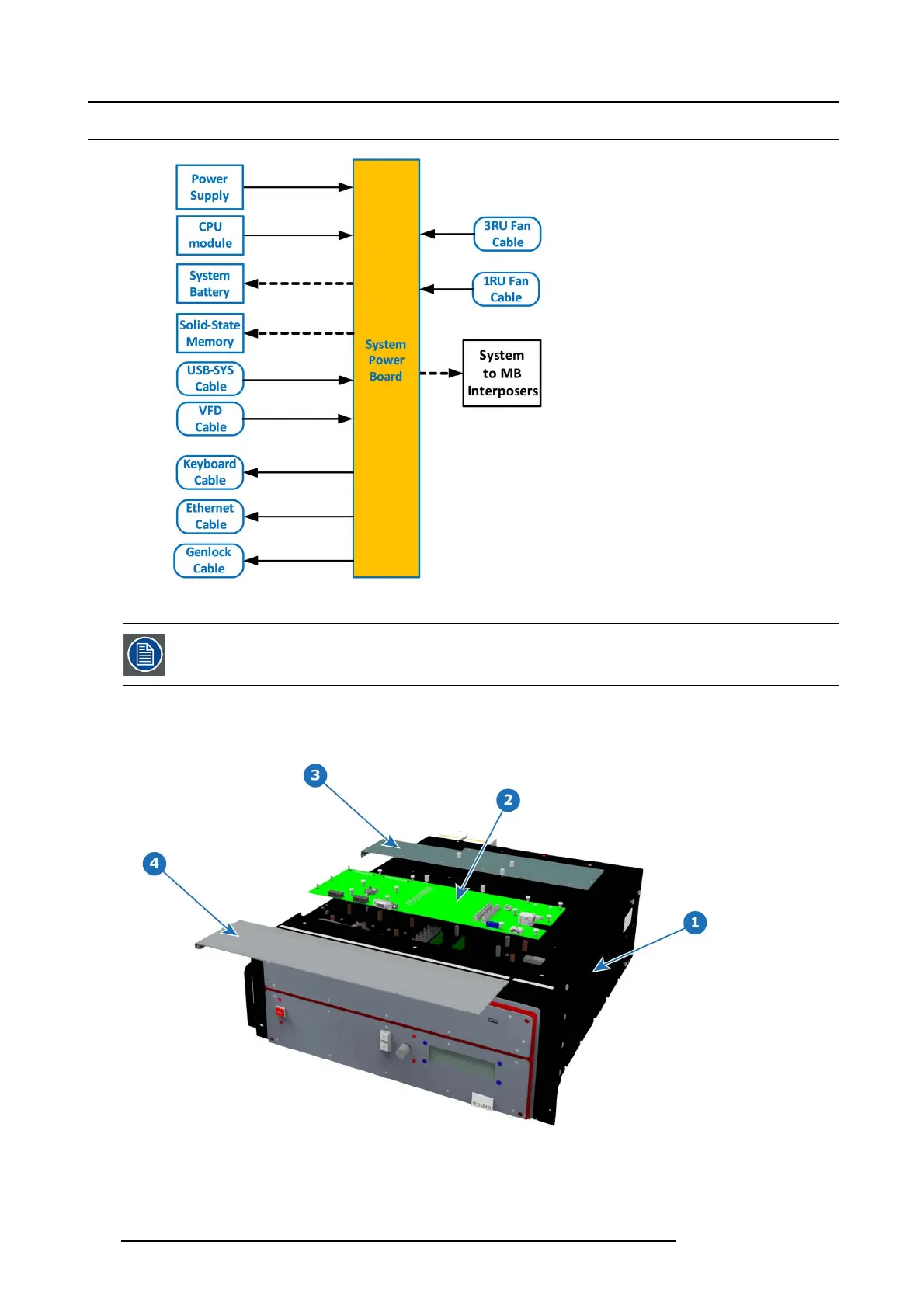

Image 10-51

Before you proceed removing the System-P ower board you need to remove the Power Supplies, Bottom Panel

and the CPU board. Follow the instructions provided in thes e sections.

Overview

Image 10-52

1 Chassis

2 System-Power Board

3 Bottom Panel part 1

4 Bottom Panel part 2

246 R5905948 E2 12/12/2014
