6. GUI orientation

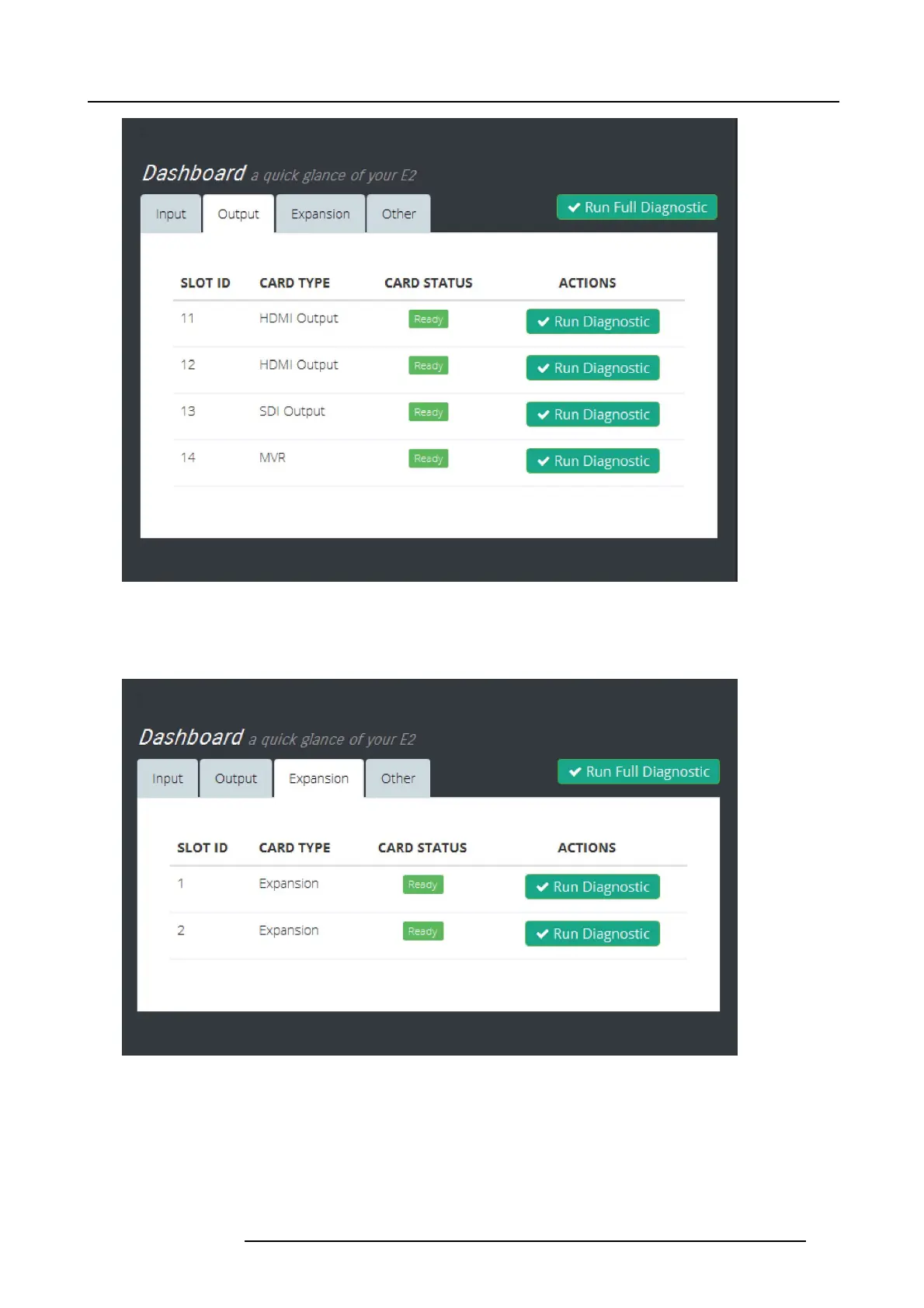

Image 6-73
Expansion
This m enu presents diagnos tics for the E xpans ion car
d. The status c olumn indicates whether any errors have been detected. De-
tailed diagnostics tests for each card ar e performed by selecting the diagnostics button under the action column.
Image 6-74
Other
This menu present
s diagnostics for the M otherboard and internal VPU cards. The status column indicates whether any errors have
been detected. Detailed diagnostics tests for each card are performed by selecting the diagnostics button under the action column.
