10. Maintenance
At this point there are still 3 cables connecting the Front cover to the unit.

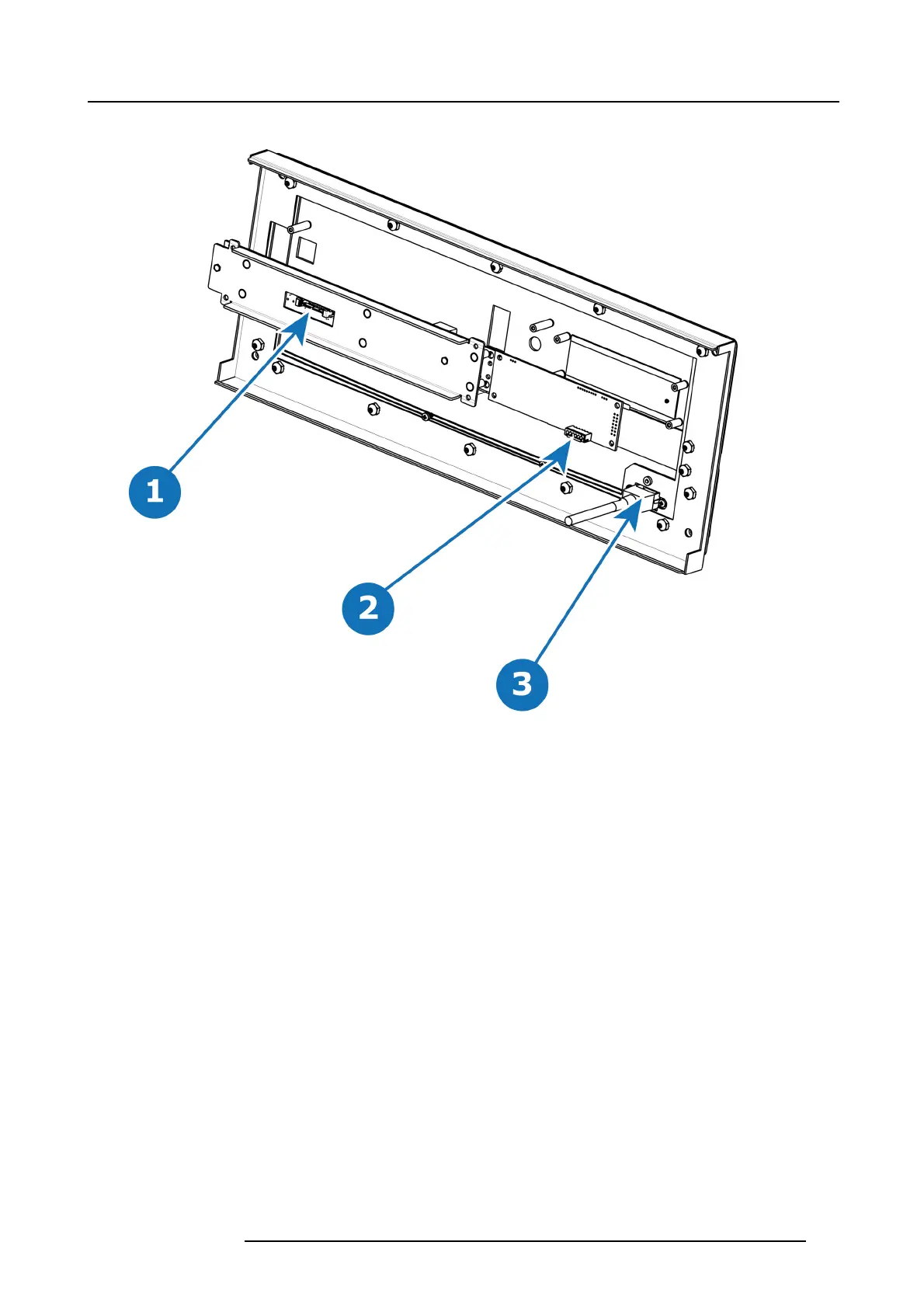

Image 10-12
1 Front Panel Connector
2 VFD Connector
3 USB Connector
3. Pull the latches away from connectors and ge ntly pull the flat Front Panel away.
4. Remove cables as outlined in the related procedures (VFD, USB and Front Panel connectors).
How to install the Front Cover Assembly
To install the Front C over A ssembly follow the same proc edure in the reverse order.
R5905948 E2 12/12/2014
223
