10. Maintenance

3. Locate the snap lock on the top of the connector and push it back to release the c onnector from the bracket.

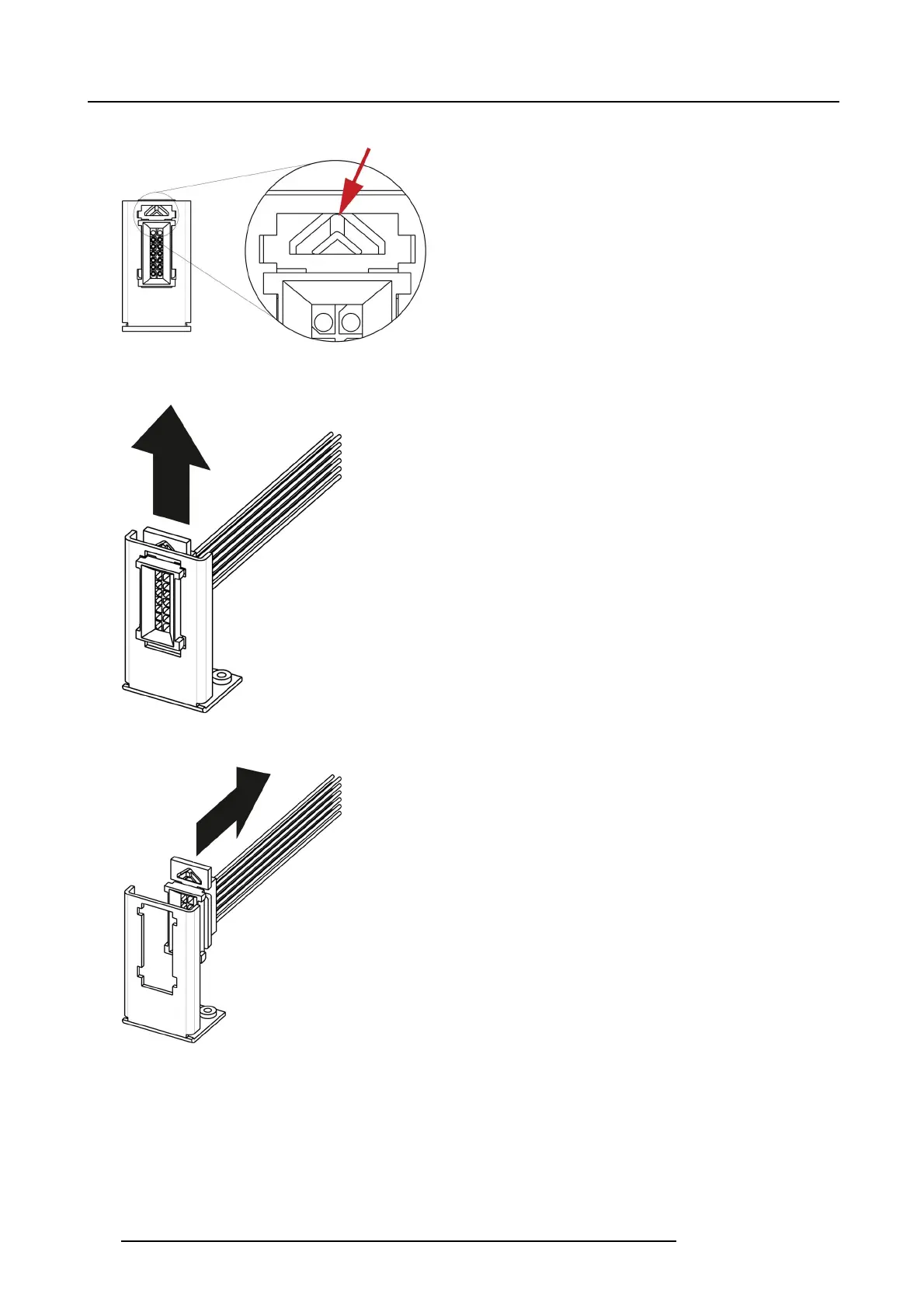

Image 10-78

4. Push the connector up until the slots in the metal bracket align with the ﬂanges on the connectors.

Image 10-79

5. Gently pull the 3 RU cable assembly away from the bracket.

Image 10-80

6. Turn the unit upside-

down and remove the bottom panel.

7. Locate the 3RU cable that is plugged on the System-Power board.

266

R5905948 E2 12/12/2014
