Capintec CAPTUS 3000 User Manual

CAPINTEC, INC. CAPTUS
®
3000

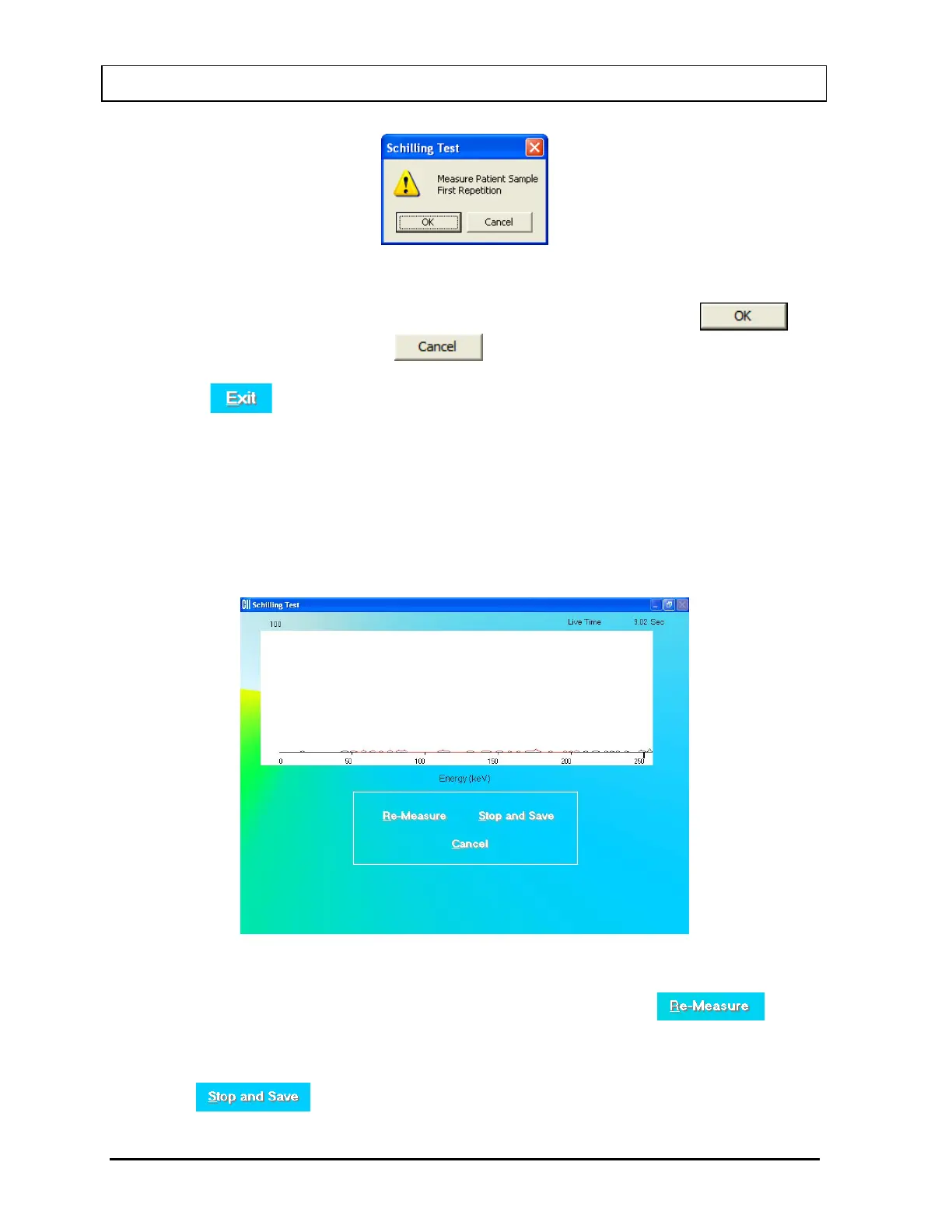

Figure 10-20
To measure the patient sample, place the sample in the well and click the
button. To quit counting, click the
button and Figure 10-19 will appear.
8. Click the
button or press Alt+E after the cycle of measurements is completed to
return to Figure 10-2 Schilling Test Main Screen. The Patient Status box will show the
calculated result for the test. For a detailed report, refer to Patients Reports on page 10-
15.
Data Acquisition
The data acquisition screen appears as shown in Figure 10-21, which displays the
live spectrum as counts are being collected.
Figure 10-21
To stop the counting midway and begin counting again, click the
button
or press Alt+R.
To stop the counting midway and save collected data and move to the next step, click
the
button or press Alt+S.
10-14 LAB TESTS November 13
