CAPINTEC, INC. CAPTUS
®
3000

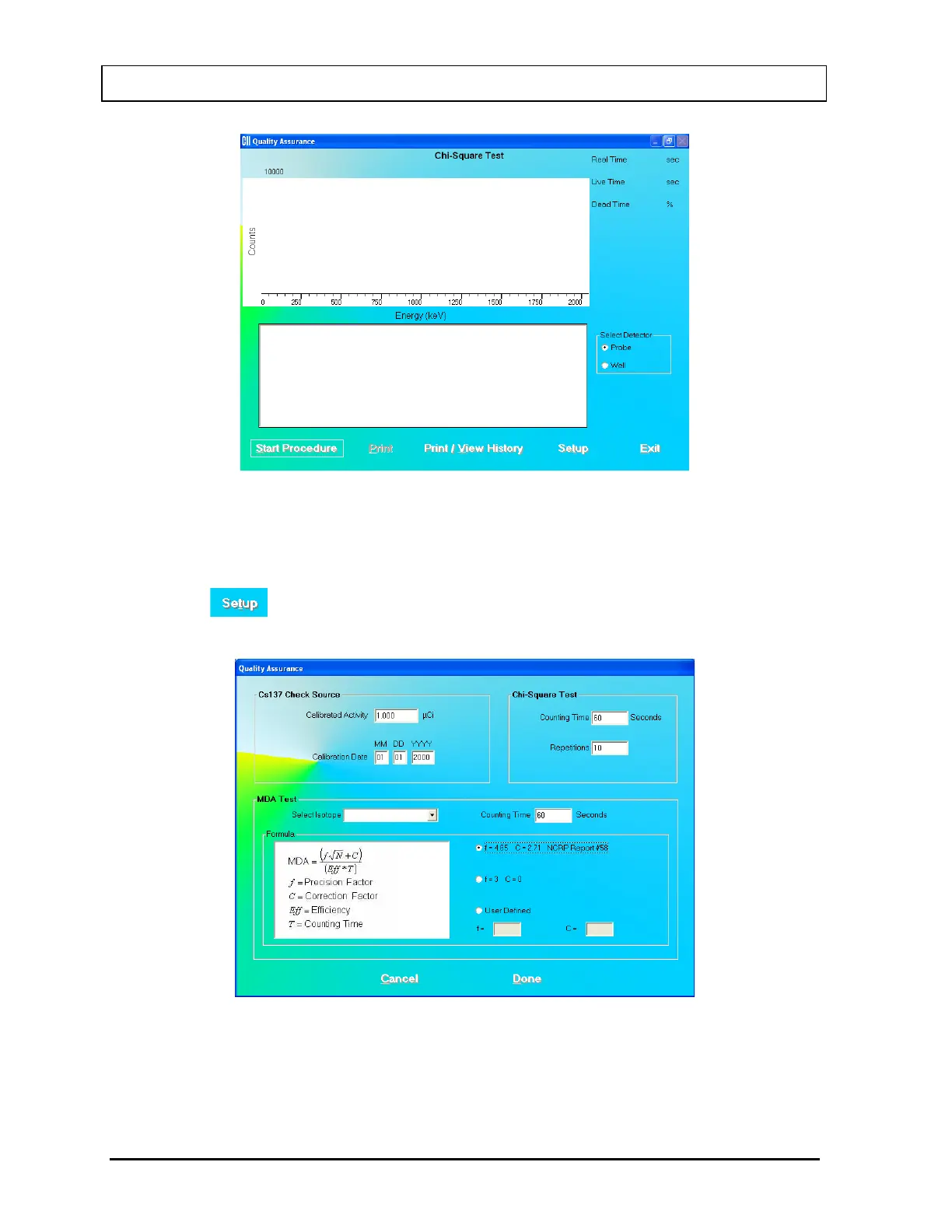

Figure 5-16 Chi-Square Test Screen
2. Note that in the Select Detector frame, PROBE is selected by default. To change the
detector to Well, click the WELL radio button.
3. Click the button or press Alt+T. Figure 5-17 Quality Setup Screen will appear.
ONLY the Chi-Square Test frame values are used in this test.
Figure 5-17 Quality Setup Screen
5-16 QUALITY ASSURANCE July 14
