ComAp InteliDrive DCU Marine - Page 85

InteliDrive DCU Marine - 3.0.0 Global Guide
85

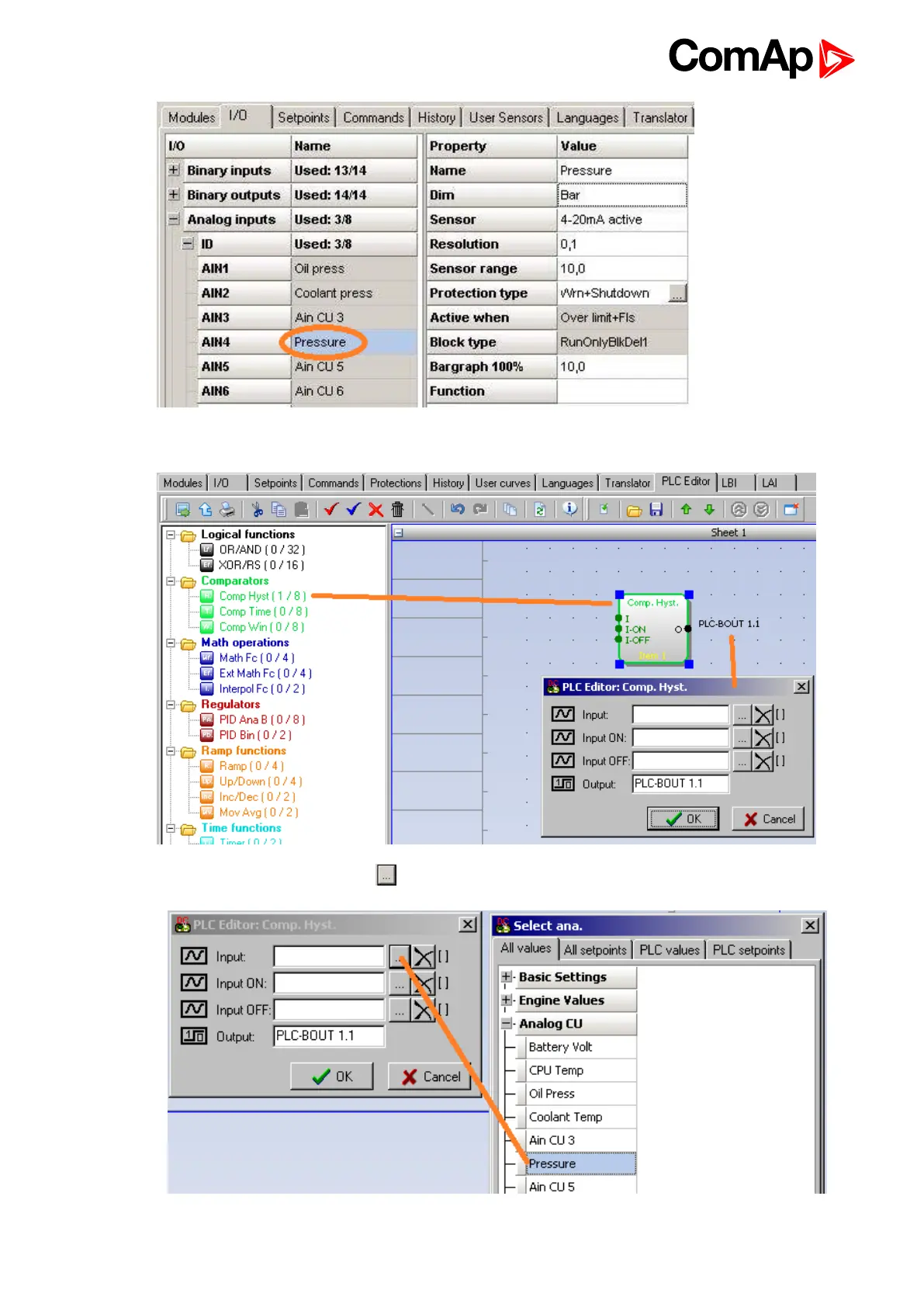

3. Go to PLC window and drag & drop PLC functional block Comp Hyst, double click the block.
4.
Configure Comparator Input: click on button and select input value from the list.
