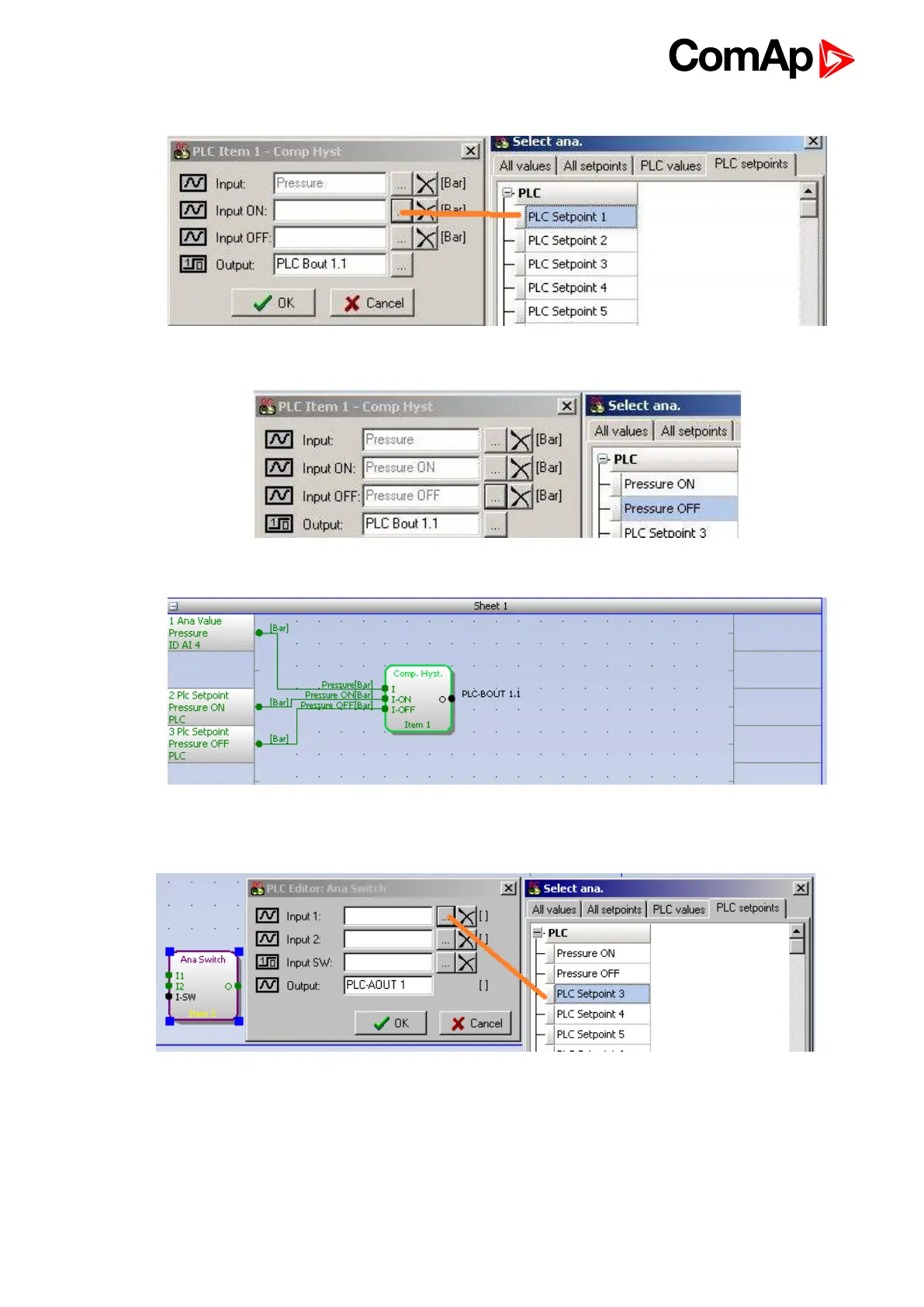

5. Configure comparator limits Input ON, Input OFF as PLC setpoints
6. Edit setpoint name in PLC setpoints list.
Result look like this
7. Drag & drop PLC functional block Ana Switch, configure Input 1 and Input 2 as PLC setpoints and edit the
setpoint names to RPM 1 and RPM 2.
8. Configure binary Input SW: PLC values: PLC Bout 1.1.
