Deutz TCD 2015 - Page 144

TCD 2015
Drive system
W 02-01-07
© 06/2006 8164-001
2/6
6

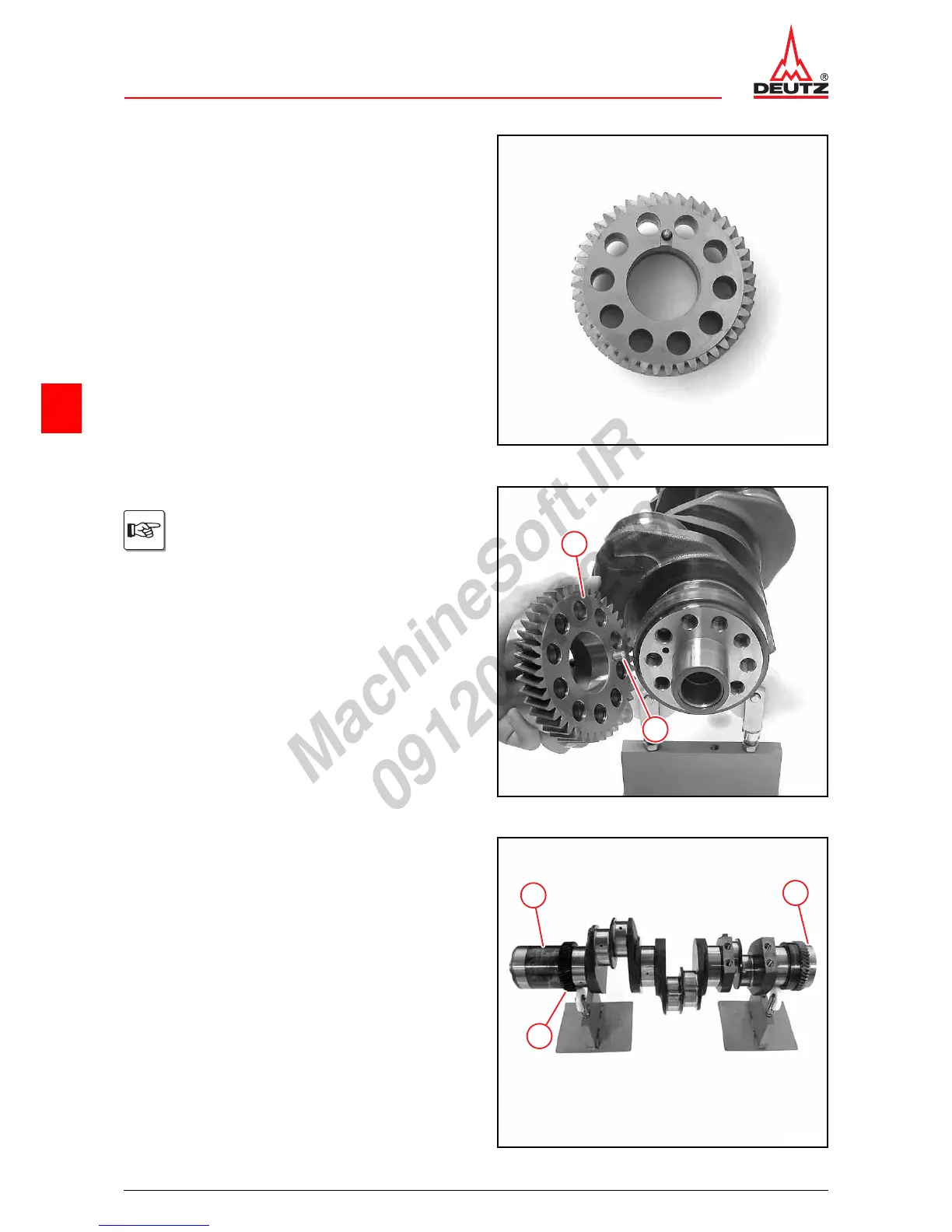

z Visually inspect the components.
© 40586-0
z Position friction disc on parallel pin (2).
z Mount gear wheel (1).
Use friction disc with locating hole.
1
2
© 40587-0
z Visually inspect peripheral surfaces (1).
z Visually inspect gear wheel (2).
1
1
2
© 40584-0
