© 06/2006 8164-001
3/6
TCD 2015
Drive system
W 02-01-07
6

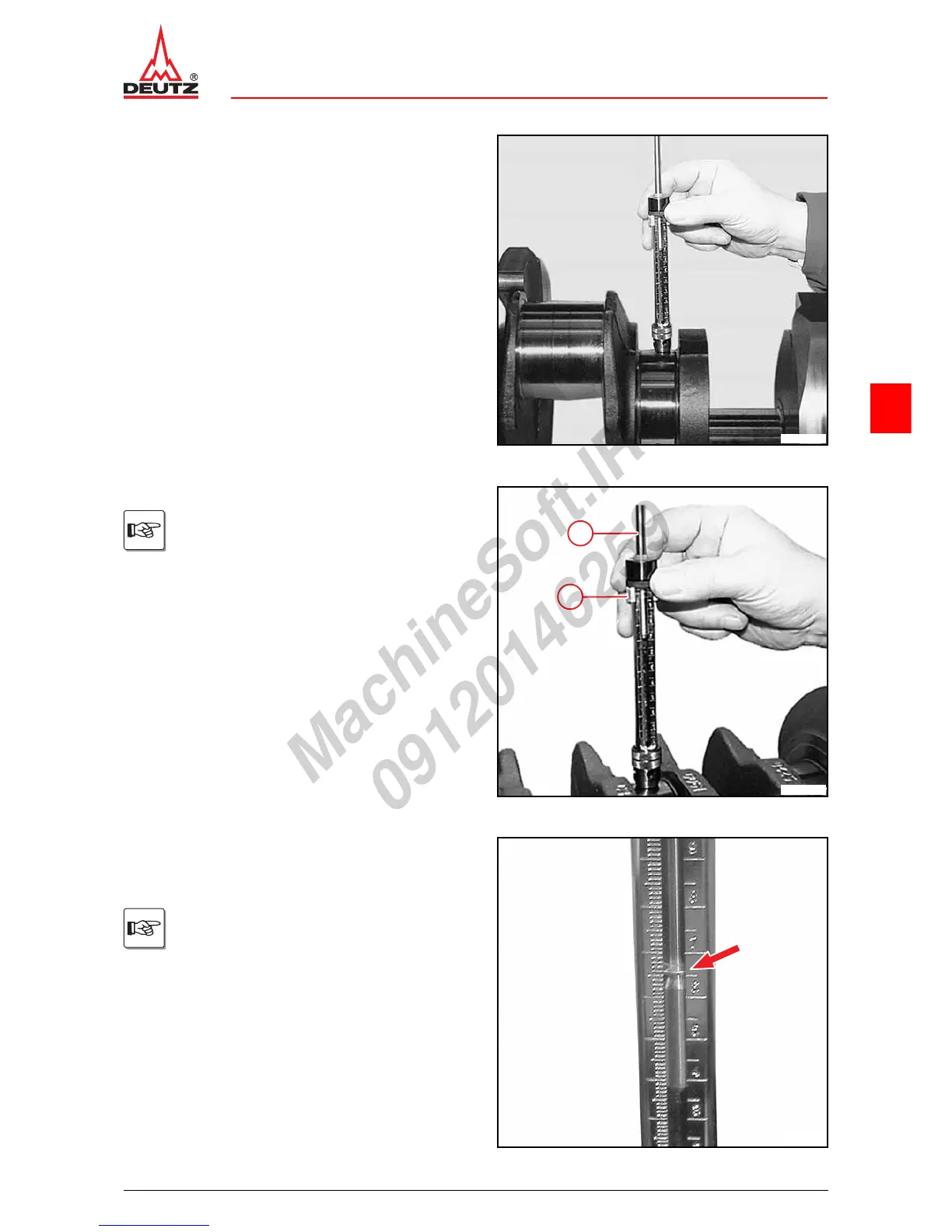

z Put hardness tester on journal.
© 34754-2
z Raise stylus (1) and press release (2).
Stylus (1) falls down, briefly strikes the sur-
face and jumps up to the measured value.
2
1
© 44445-0
z Read off displayed value (arrow) from hardness test-
er.
P02 07
The measured value is to be converted
according to the table of the measuring
device.
© 43515-1
