© 06/2006 8165-001
3/6
TCD 2015
Drive system
W 02-02-02
6

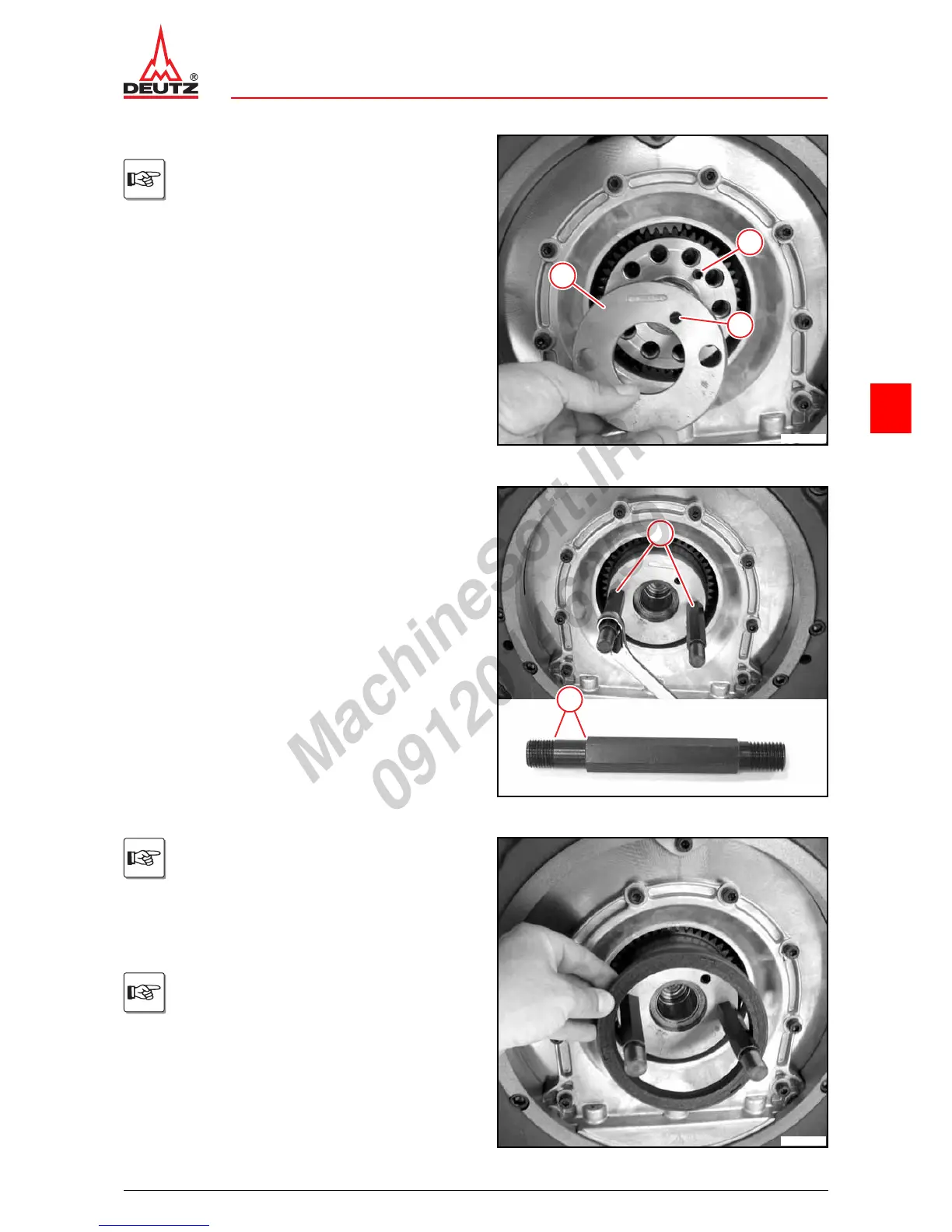

z Mount shim (1).
Pay attention to alignment of the
clampingbushing (2) and locating hole (3).
1
2
3
© 36755-1
z Turn bolt (1) with thread (2) into crankshaft.
1
2
© 36757-1
z Oil the sealing lip of the crankshaft sealing ring light-
ly.
z Place the crankshaft sealing ring carefully on the pe-
ripheral surface.
Use new crankshaft sealing ring.
The sealing lip faces the crankcase.
© 36758-1
