TCD 2015
Drive system
W 02-02-02
© 06/2006 8165-001
4/6
6

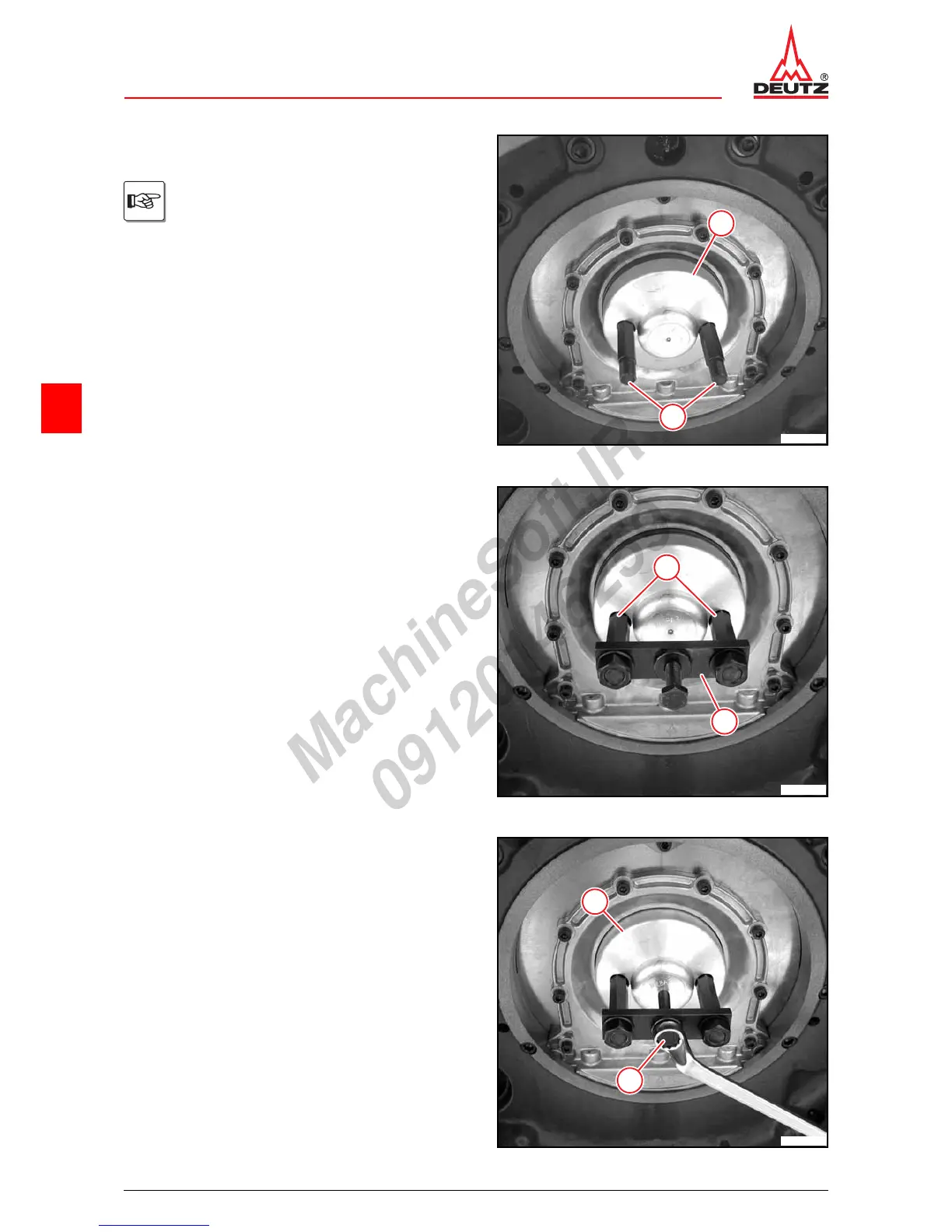

z Place assembly sleeve (1) on bolt (2).
z Press on assembly sleeve.
The assembly sleeve is evenly in contact
with the crankshaft sealing ring.
2
1
© 36759-1
z Push pressure cross-member (1) onto bolt (2).
z Mount washers.
z Screw on nuts.
2
1
© 36760-1
z Tighten screw (1) until the assembly sleeve (2) is
touching.
z Remove assembly tool.
1
2
© 36761-1
