TCD 2015
Drive system
W 02-02-04
© 06/2006 8166-001
4/6
6

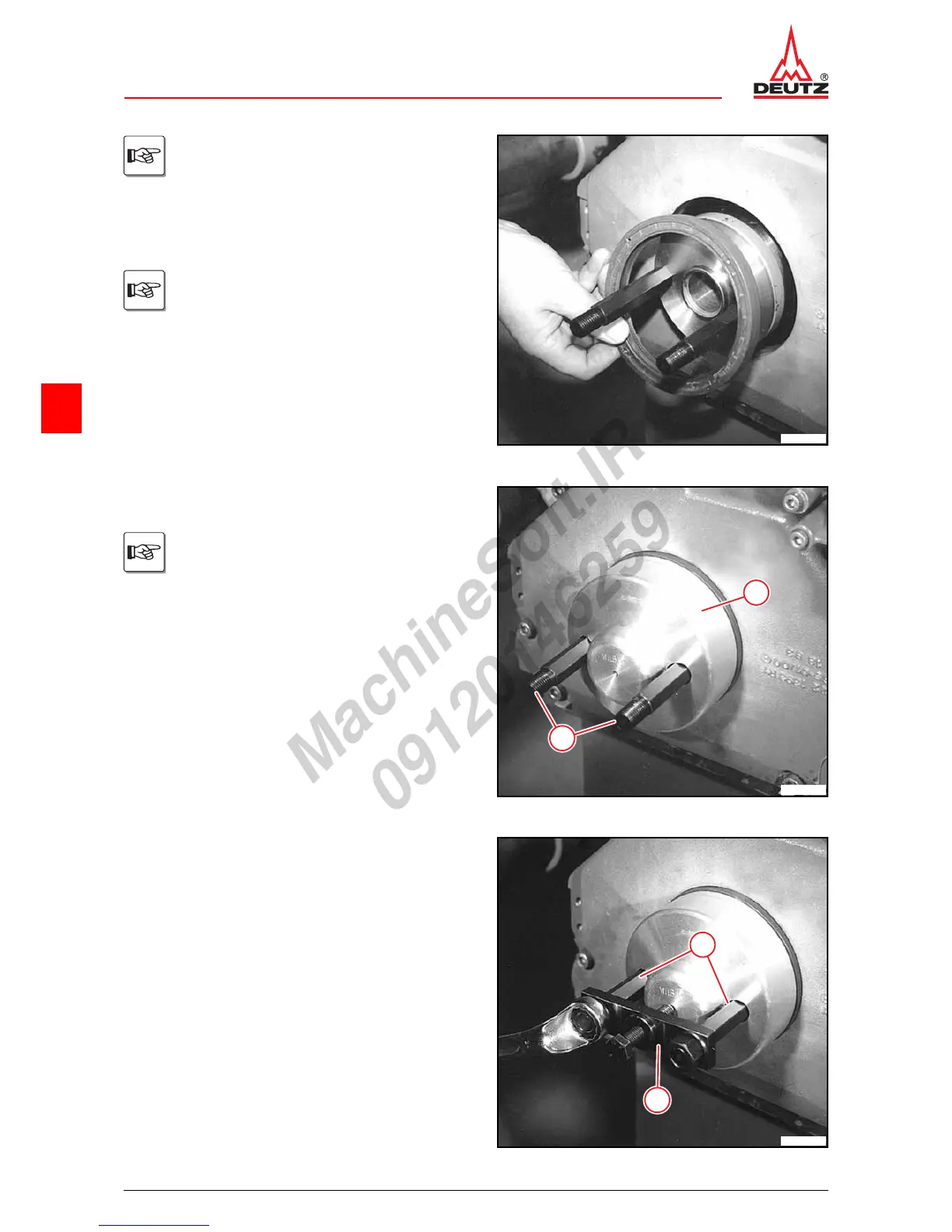

z Oil the sealing lip of the crankshaft sealing ring light-
ly.
z Place the crankshaft sealing ring carefully on the pe-
ripheral surface.
Use new crankshaft sealing ring.
The sealing lip faces the crankcase.
© 35203-2
z Place assembly sleeve (1) on bolt (2).
z Press on assembly sleeve.
The assembly sleeve is evenly in contact
with the crankshaft sealing ring.
2
1
© 35204-2
z Push pressure cross-member (1) onto bolt (2).
z Mount washers.
z Screw on nuts.
2
1
© 35205-2
