TCD 2015
Drive system
W 02-09-03
© 06/2006 8170-001
4/8
6

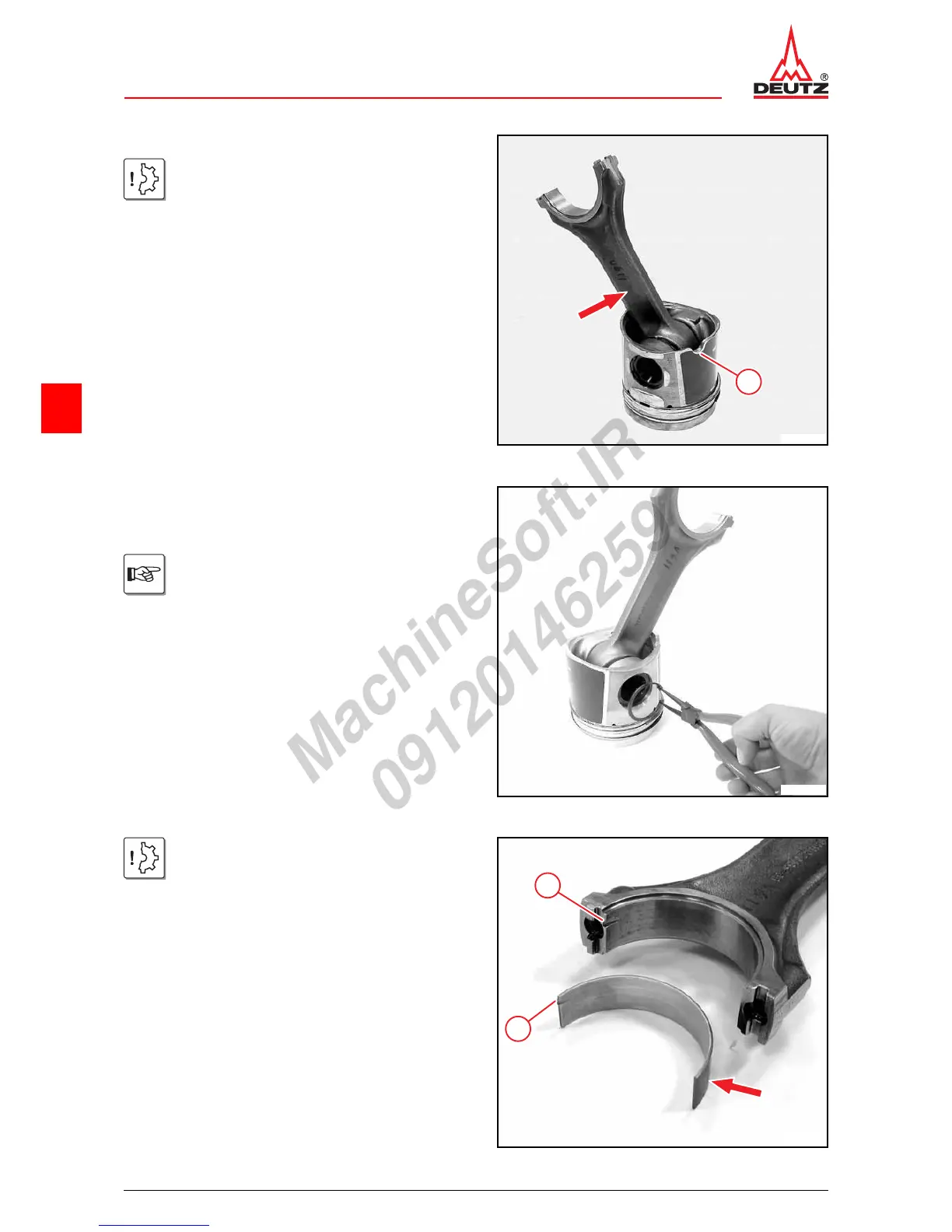

z Insert con rod.
Attention!
The concave surface (arrow) of the con-
necting rod must face the recess (1) for the
piston cooling nozzle on the piston.
1
© 40967-0
z Oil the piston bolt lightly.
z Insert piston pin in piston.
z Insert new locking ring.
Ensure that the installation location is free
from faults.
© 42379-1
z Insert bearing shell in the con rod.
Attention!
Note the assignment of the bearing shells.
Insert big end bearing shell with the black
anodised rear side (arrow) in the connec-
ting rod.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 36768-1
