© 06/2006 8170-001
5/8
TCD 2015
Drive system
W 02-09-03
6

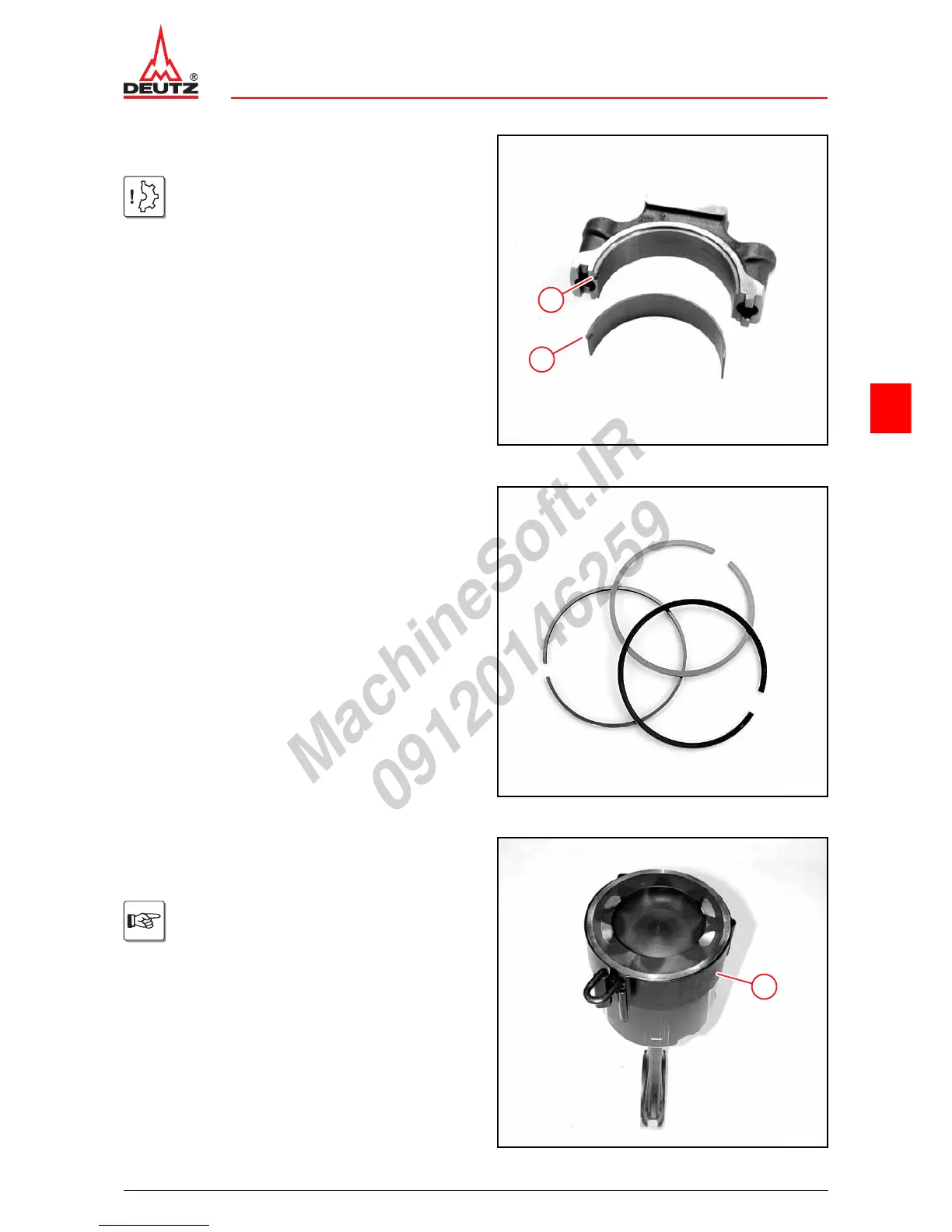

z Insert bearing shell in the respective big end bearing
cap.
Attention!
Note the assignment of the bearing shells.
The anti-rotation lock (1) must lock in
groove (2).
1
2
© 36769-1
z Arrange the piston ring joints with an offset of
about 120° to each other.
z Check piston rings and piston ring grooves.
W 02-10-03
© 42380-1
z Lightly oil cylinder running surface, piston, piston
rings and lifting bearing journal lightly.
z Clamp piston rings with piston ring compressor (1).
Do not turn the piston rings any further.
1
© 36771-1
