TCD 2015
Drive system
W 02-09-03
© 06/2006 8170-001
6/8
6

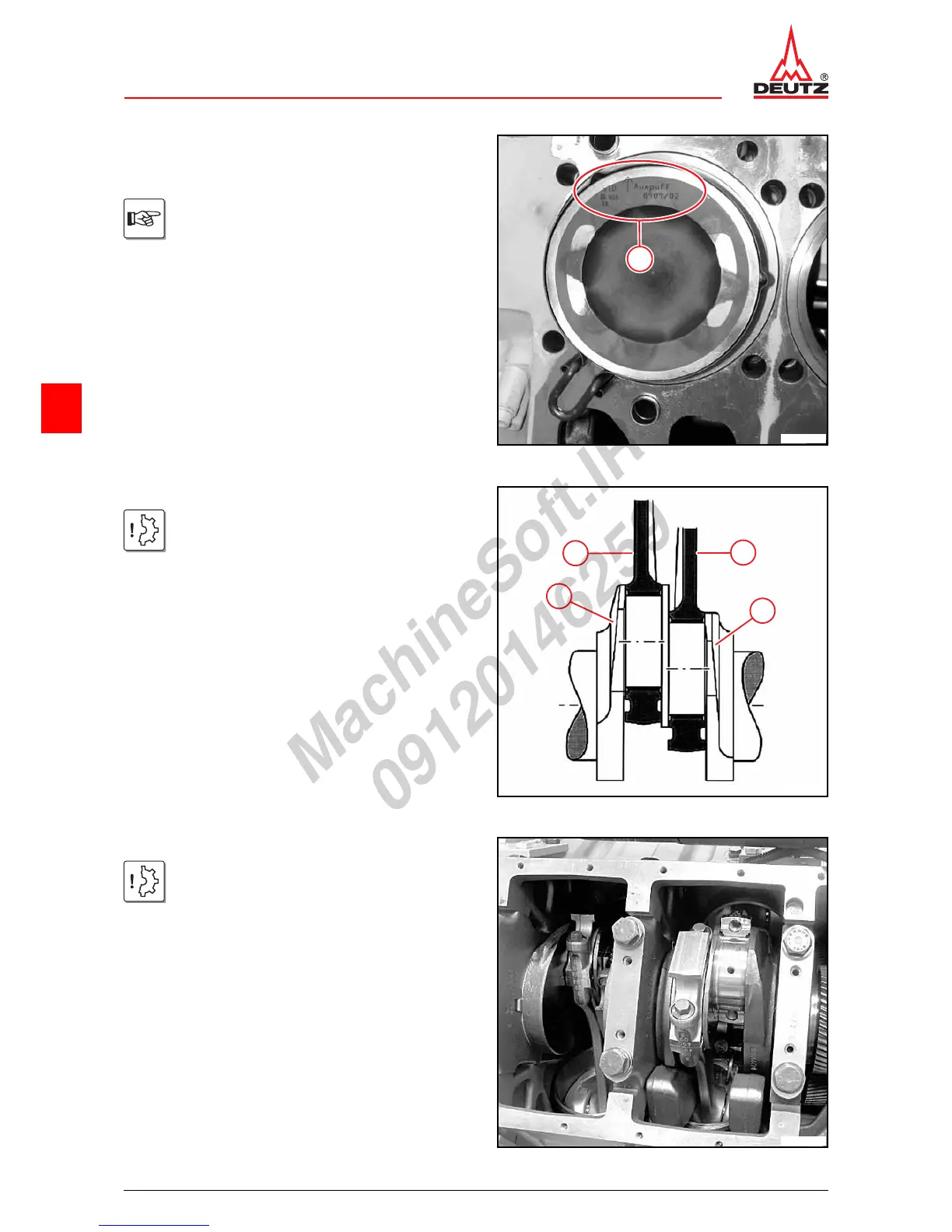

z Set lifting journal at bottom dead centre (BDC).
z Push piston and con rod completely into cylinder lin-
er.
Note the cylinder assignment of the piston.
Note identification (1) of the installation
position on the piston base.
The arrow must point to the exhaust gas
side.
The piston ring compressor must lie flat on
the cylinder liner.
1
© 36772-1
z Check installation position of the connecting rods.
Attention!
The flattened side (1) must face the adja-
cent lifting crank web (2).
1
1
2
2
© 40964-1
z Press the con rod carefully against the lifting journal.
Attention!
Do not jam the con rod with the crankshaft.
Do not damage the piston cooling nozzle.
© 42381-1
