TCD 2015
Drive system
W 02-09-03
6

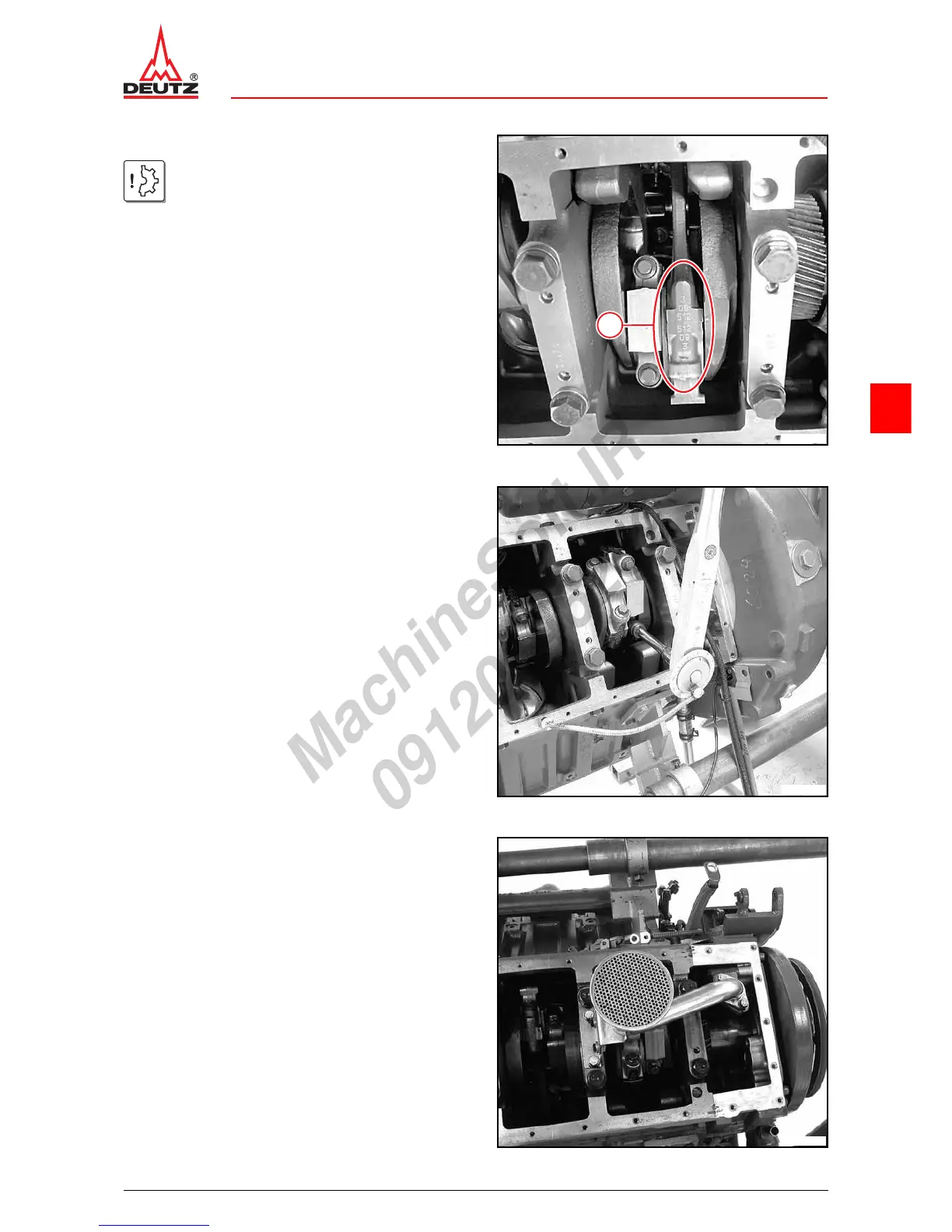

z Mount big end bearing cap.
Attention!
Note the assignment of the big end bearing
cap.
The identification numbers (1) on the con
rod and the big end bearing cap must be
identical and opposite to each other when
assembled.
1
© 42382-1
z Tighten new screws with the socket wrench insert
and rotation angle disc.
A02 020
© 42383-1
z Install oil suction pipe.
W 08-04-06
z Install oil suction pipe (Railway).
W 08-04-06
