TCD 2015
Crankcase
W 03-08-01
© 06/2006 8178-001
10/14
6

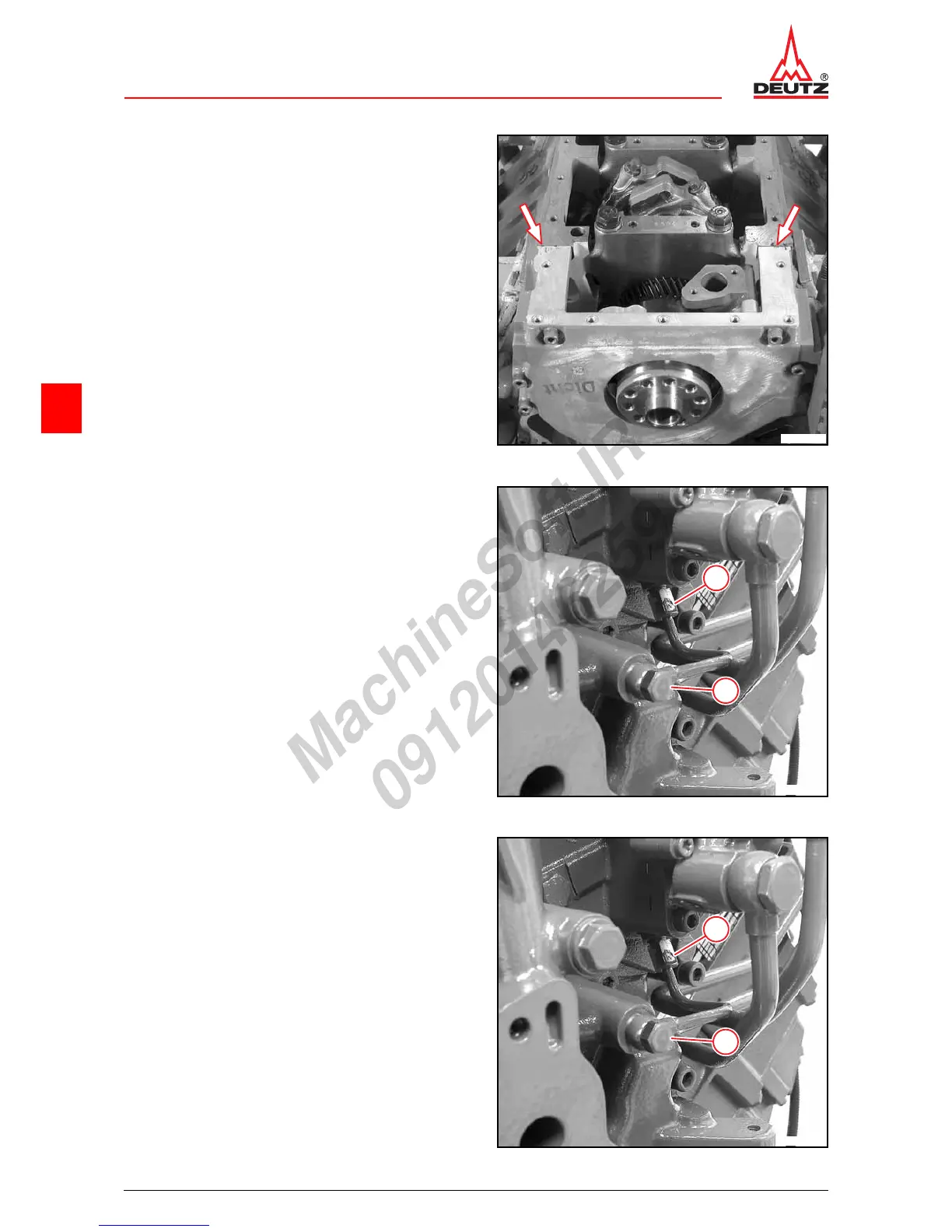

z Cut off overhanging gasket (arrows) flush with the
sealing surface of the oil tray.
© 40549-0
z Mount new sealing rings.
z Mount the lubricating oil pipe.
z Screw on hollow screw (2).
z Screw on lock nut (1).
2
1
© 40536-0
z Tighten hollow screw (2).
A08 013
z Tighten lock nut (1).
A08 014
2
1
© 40536-0
