TCD 2015
Engine control
W 04-05-05
© 06/2006 8187-001
8/24
6

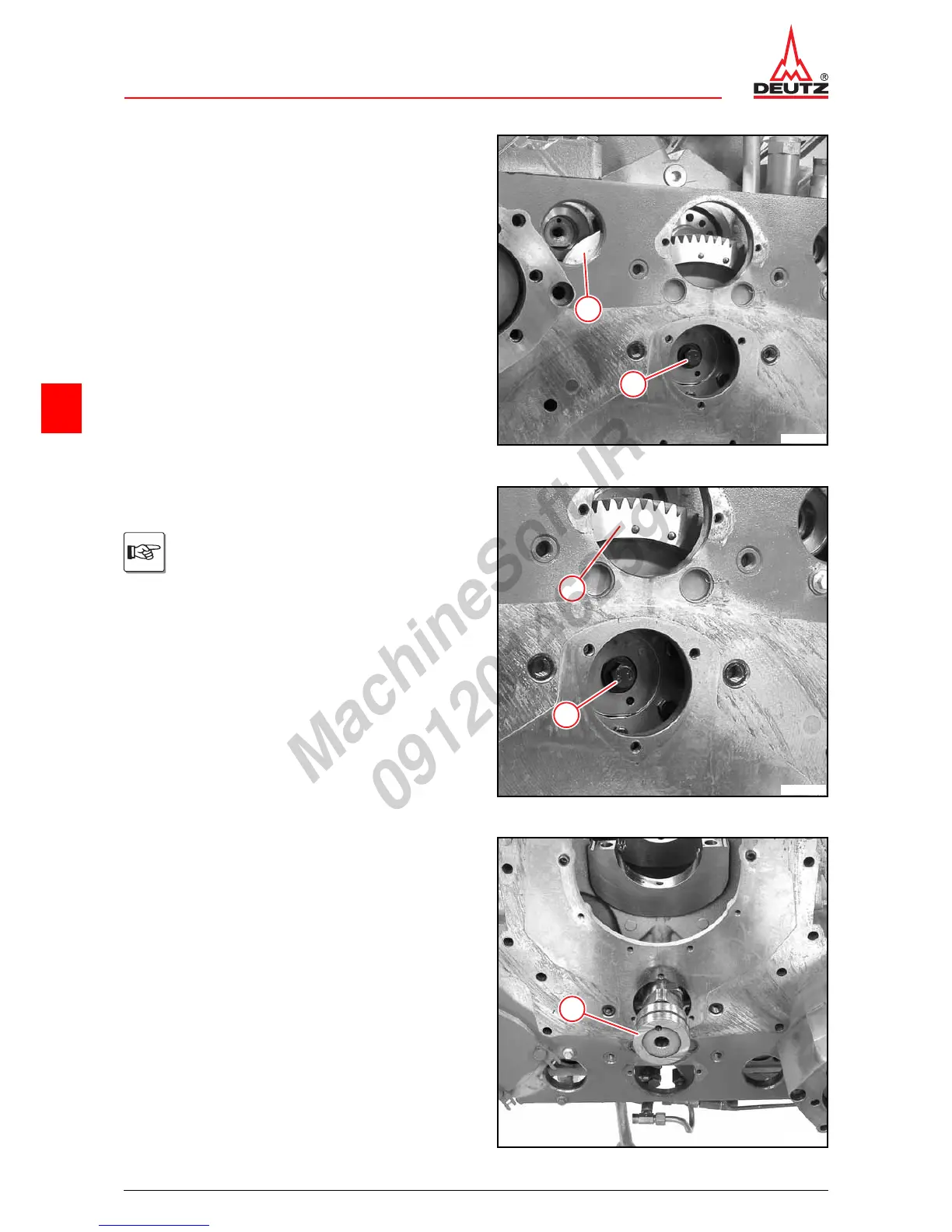

z Loosen screw (1).
z Turn back the camshaft gear wheel.
z Remove counter holder (2).
1
2
© 40428-0
z Unscrew screw (1).
z Remove camshaft toothed wheel (2).
Press back the injection pump camshaft
carefully as far as it goes.
1
2
© 40429-0
z Turn engine 180°.
z Press in all tappets.
z Hang engine on workshop crane.
z Unhook the engine from the assembly block on one
side.
z Pull out the camshaft (1) carefully to the flywheel
side.
1
© 40430-0
