TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
6/32
6

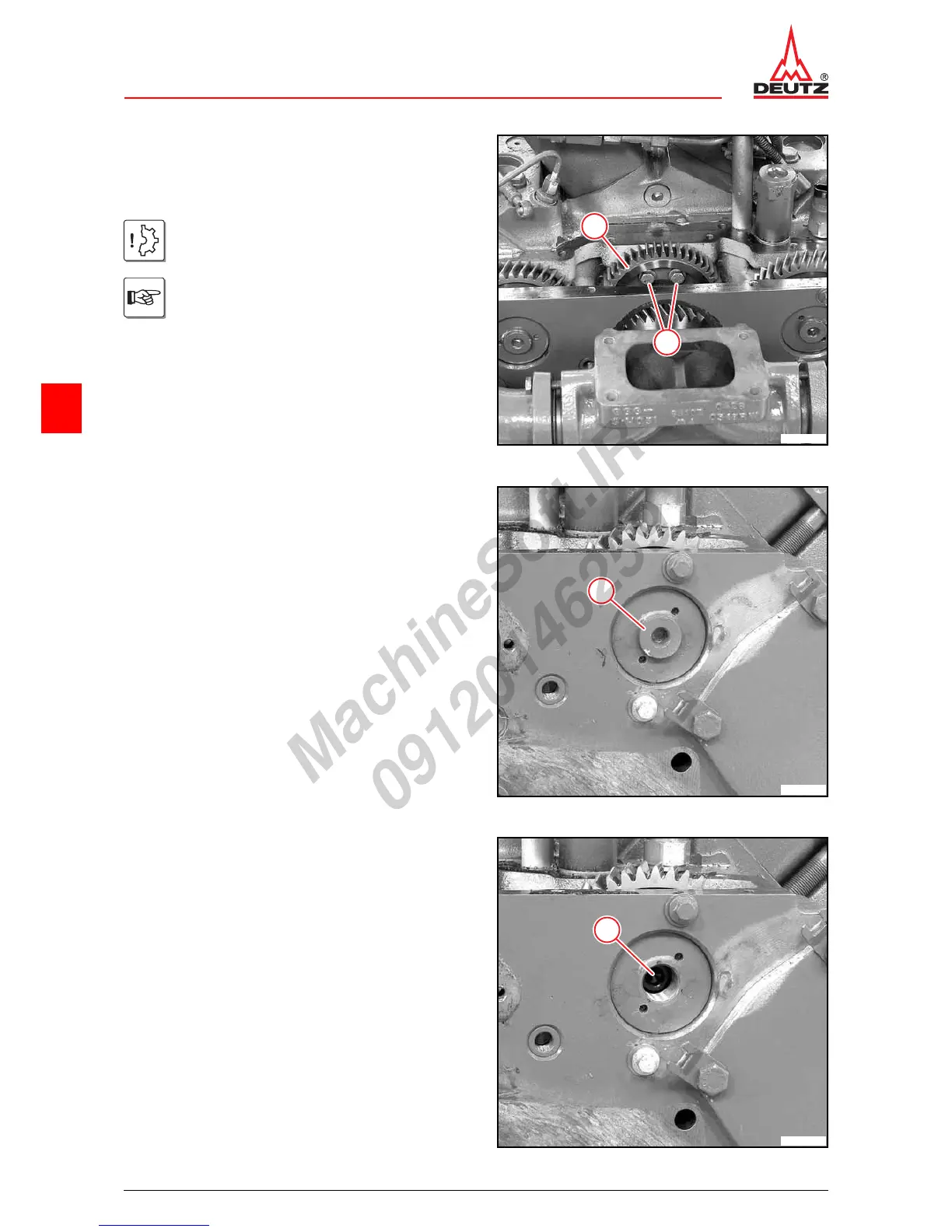

z Turn over crankshaft until the valve overlap is
achieved on cylinder no. B2.
z Unscrew screws (1).
z Remove gear wheel (2).
z Remove turning gear.
W 04-06-03
Attention!
Make sure no parts fall into the crankcase!
Press back the injection pump camshaft
carefully as far as it goes.
2
1
© 40467-0
z Remove rocker arm brackets.
W 01-02-02
z Remove connection housing.
W 03-09-04
z Remove crankcase sealing ring (flywheel side)
W 02-02-02
z Unscrew screw (1).
1
© 40419-0
z Unscrew screw (1).
1
© 40420-0
