© 06/2006 8189-001
5/32
TCD 2015
Engine control
W 04-05-07
6

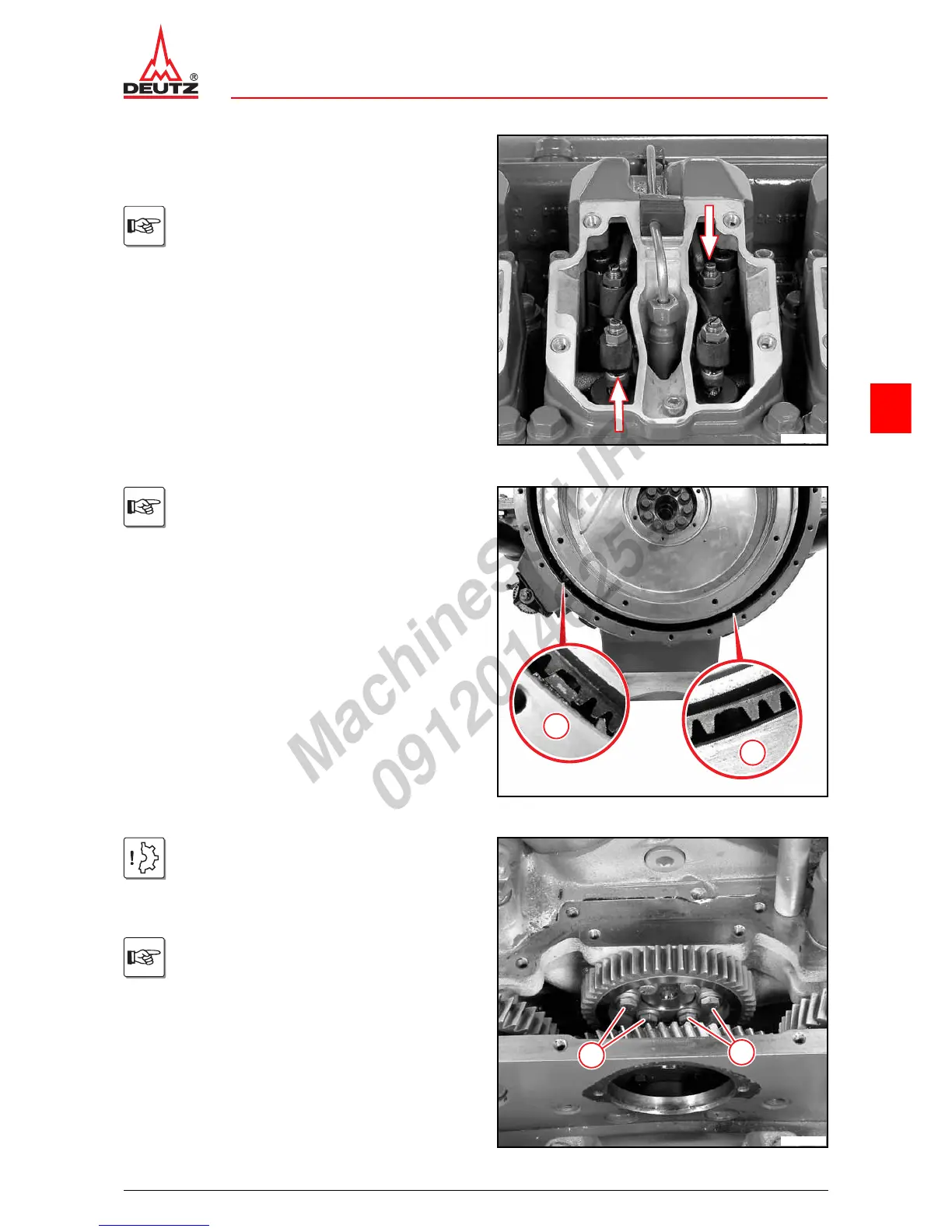

z Turn over crankshaft until the valve overlap is
achieved on cylinder no. B2.
T01 63
Valve overlap means:
The inlet valve starts opening,exhaust
valve closes.
© 40465-0
The locking pin of the turning gear must
snap into the tooth notch (1) of the starter
ring gear.
The second tooth notch (2) must face the
B-bank.
1
2
© 40466-0
z Unscrew screws (1).
z Pull locking pin.
Attention!
Make sure no parts fall into the crankcase!
Concealed screws can be accessed by
turning the crankshaft with the turning gear.
1
1
© 40590-0
