TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
16/32
6

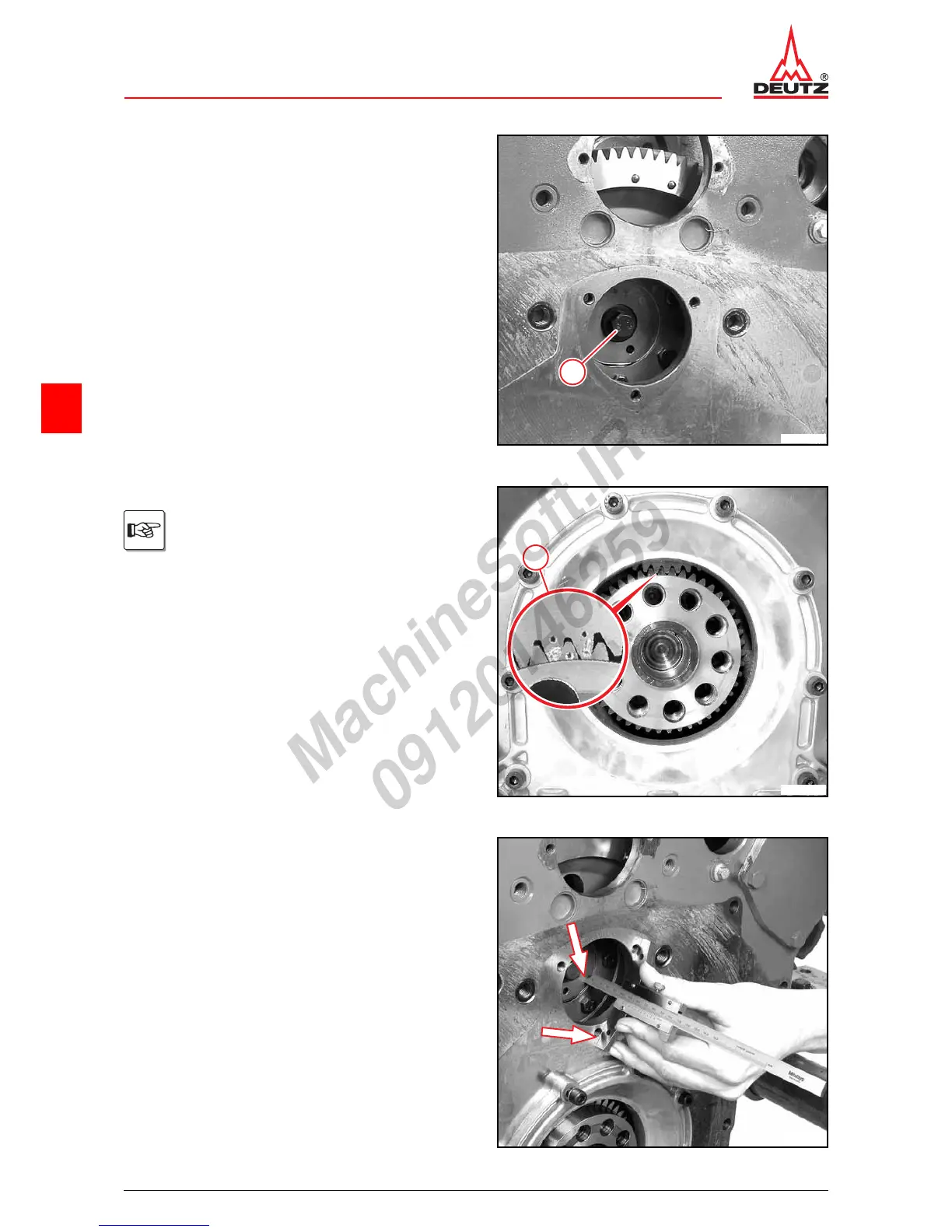

z Tighten screw (1).
A04 001
1
© 40473-0
z Turn the crankshaft with the turning gear evenly.
z Remove counter holder.
The marking on the crankshaft gear wheel
must be between the markings on the
camshaft gear wheel (1).
1
© 40474-0
Determining axial backlash of the cam-
shaft
z Push back the camshaft as far as it goes.
z Measure the camshaft stand back from the lay-on
surface on the camshaft gear wheel to the crankcase
with the depth measuring appliance (arrows).
z Note measured value, dimension (a).
© 40478-0
