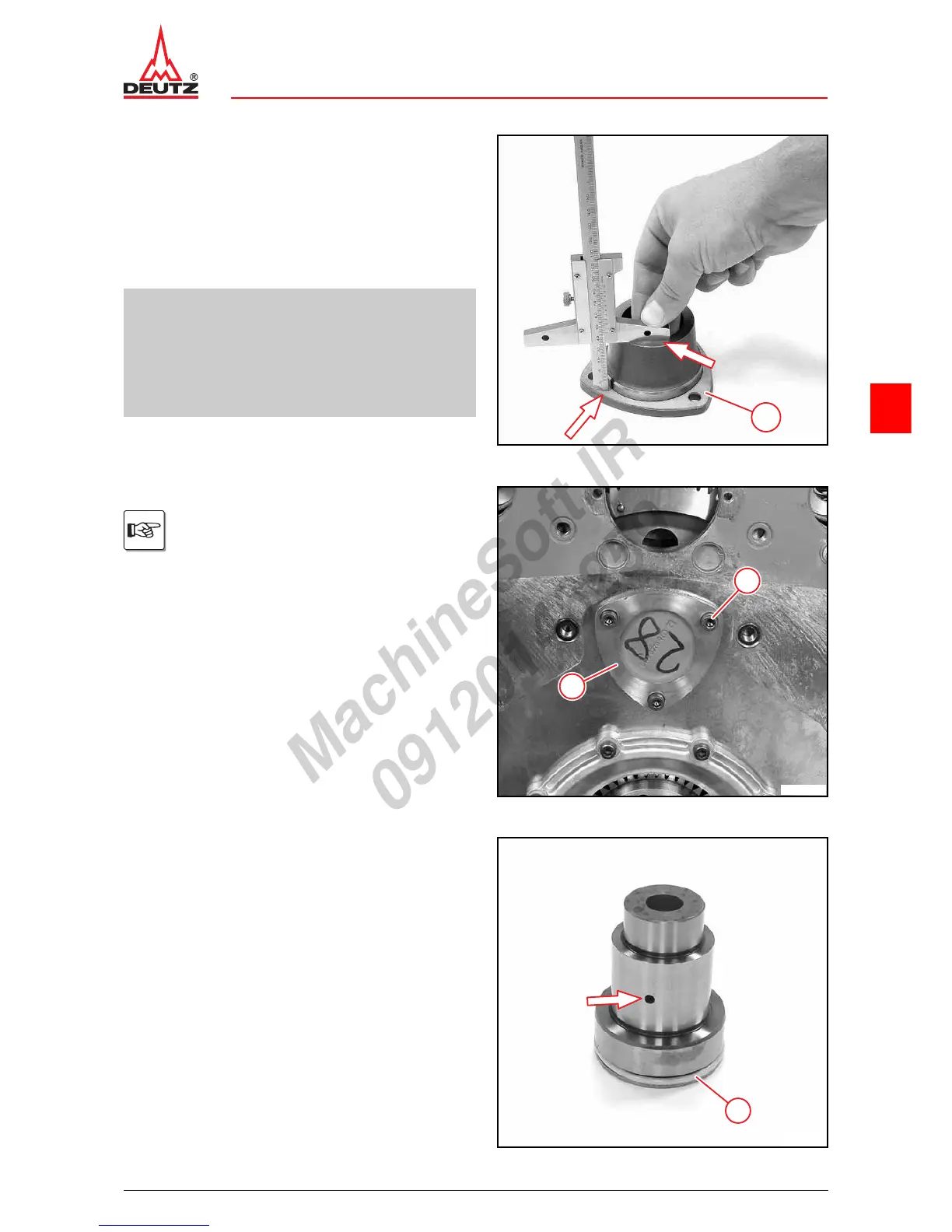

z Mount new gasket (1).
z Measure the flange height from the running surfaces
to the lay-on surface with the depth measuring appli-
ance (arrows).
z Note measured value, dimension (b).
z Determine axial backlash.
P04 35
z Correct deviation with gaskets.
P04 37
Calculation example
Desired: Axial backlash
Given: -
Measured: (a) = 45.80 mm
(b) = 45.50 mm
Calculation: Axial backlash = dimension (a) - dimension (b)
45.80 mm - 45.50 mm
Result: =0.30mm
1
© 42273-2
z Mount cover (2).
z Fit new sealing rings.
z Tighten all screws (1).
A04 002
Insert screws with locking agent.
1
2
© 40468-0
z Mount new O-ring (1).
z Lightly oil O-ring.
z Check oil channel (arrow) for free passage.
1
© 40435-0
