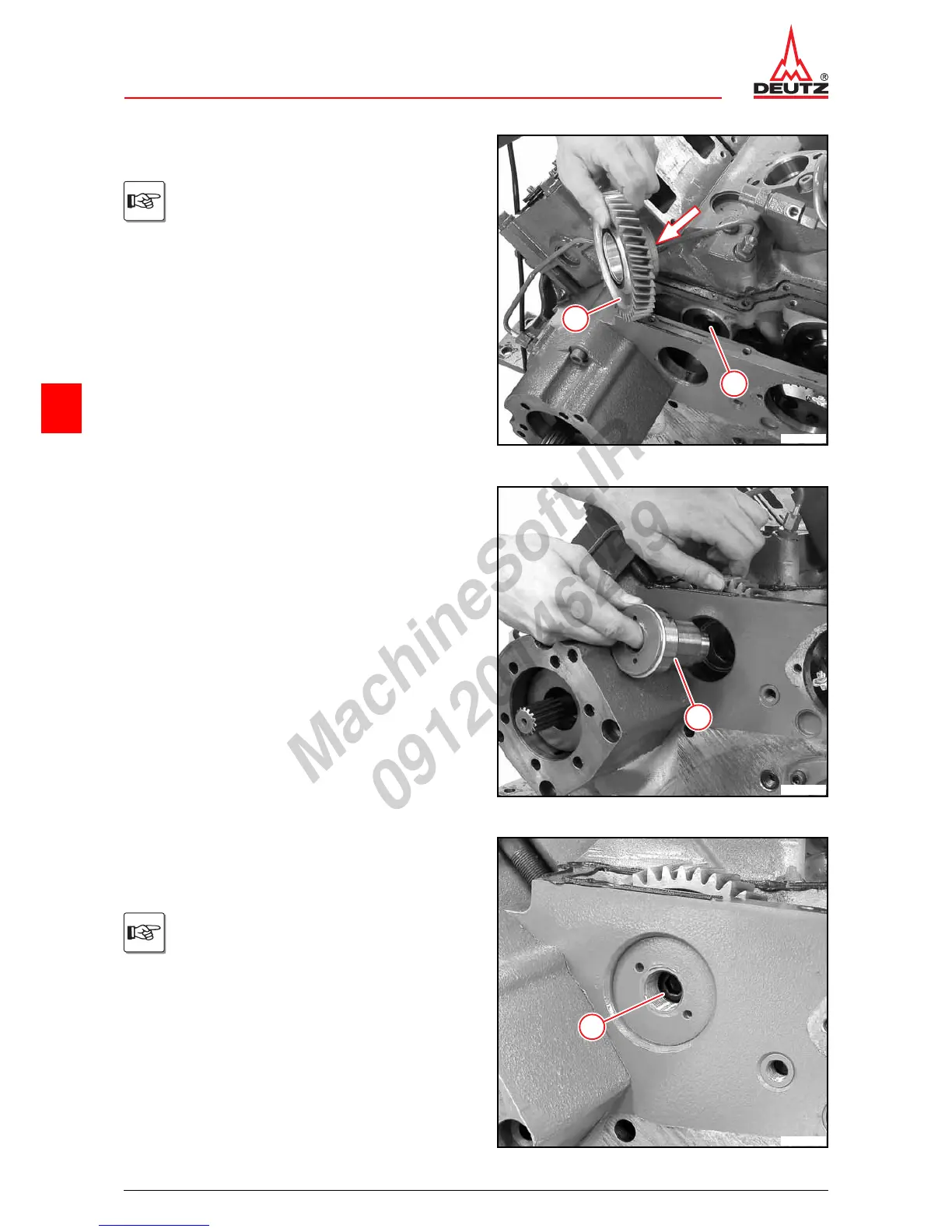

z Lightly oil bearing liner (1) with engine oil.
z Insert idler gear (2).
The collar (arrow) faces the bearing bush.
1
2
© 40438-0
z Insert bolt (1).
1
© 40437-0
z Lightly oil screw (1).
z Tighten screw (1).
 A04 013
Screw length:
M12 x 80 mm
1
