TCD 2015
Engine control
W 04-05-07
6

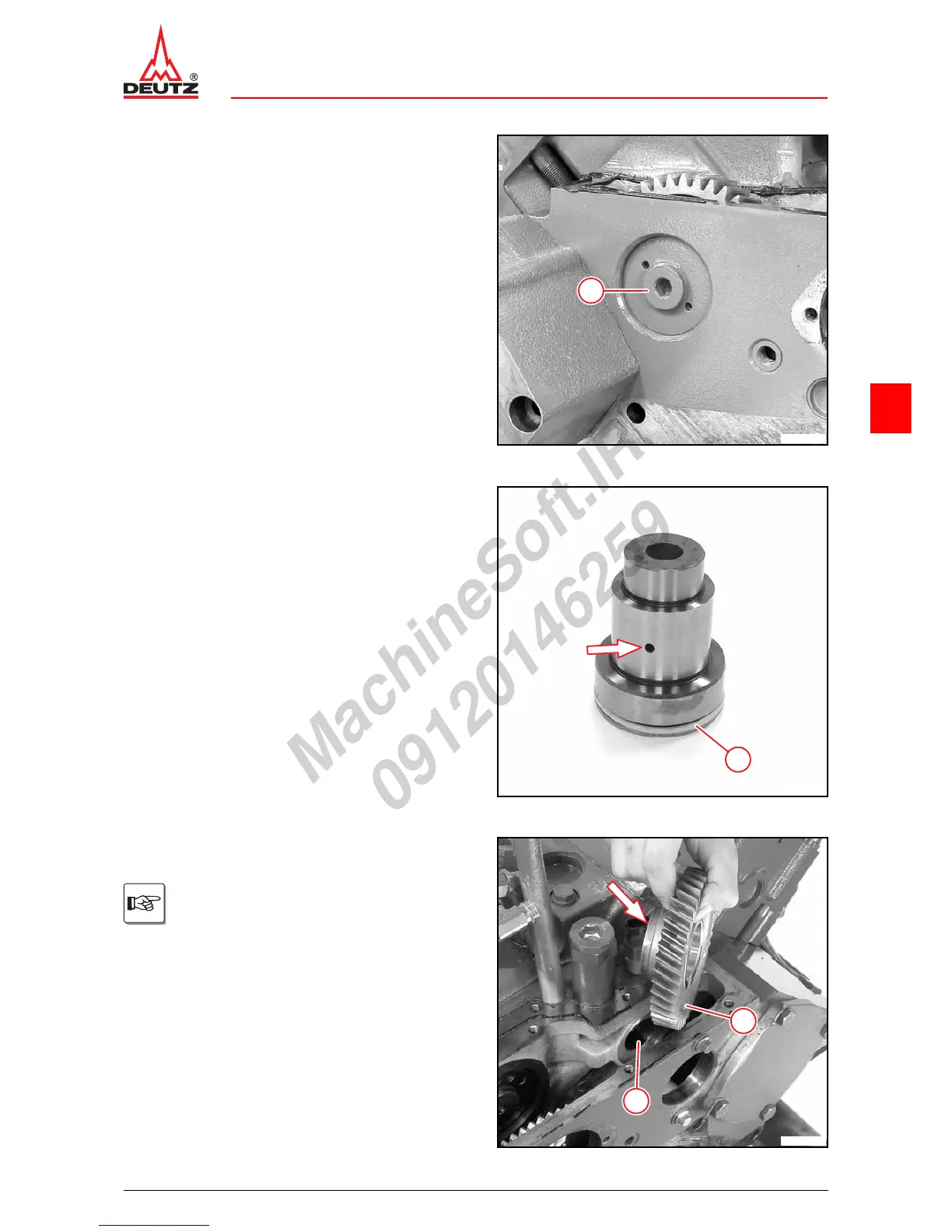

z Lightly oil screw (1).
z Tighten screw (1).
 A04 012
1
© 40422-0
z Mount new O-ring (1).
z Lightly oil O-ring.
z Check oil channel (arrow) for free passage.
1
© 40435-0
z Lightly oil bearing liner (1) with engine oil.
z Insert idler gear (2).
The collar (arrow) faces the bearing bush.
1
2
© 40436-0
