Deutz TCD 2015 - Page 349

© 06/2006 8189-001
29/32
TCD 2015
Engine control
W 04-05-07
6

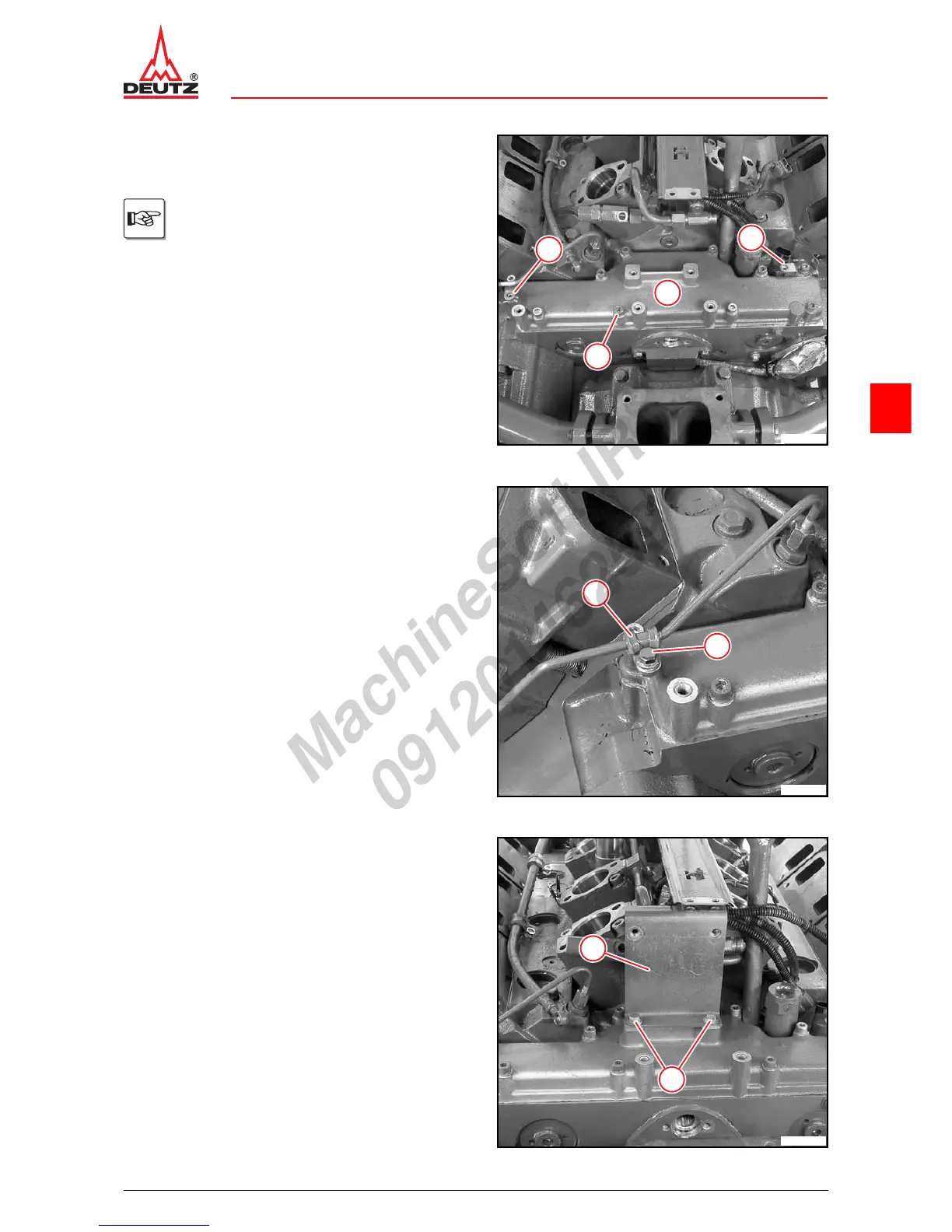

z Clean sealing surfaces.
z Apply packing compound evenly to the sealing sur-
face of the gear case.
z Mount gear case cover (1).
z Mount holder (2).
z Tighten all screws (3) alternately.
 A04 020
Use packing compound DEUTZ DW 48.
1
3
2
2
© 40516-0
z Mount pipe clamp (2).
z Tighten screw (1).
 A08 045
1
2
© 40456-0
z Mount holder (2).
z Tighten screws (1).
 A12 071
1
2
© 40455-0
