Deutz TCD 2015 - Page 350

TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
30/32
6

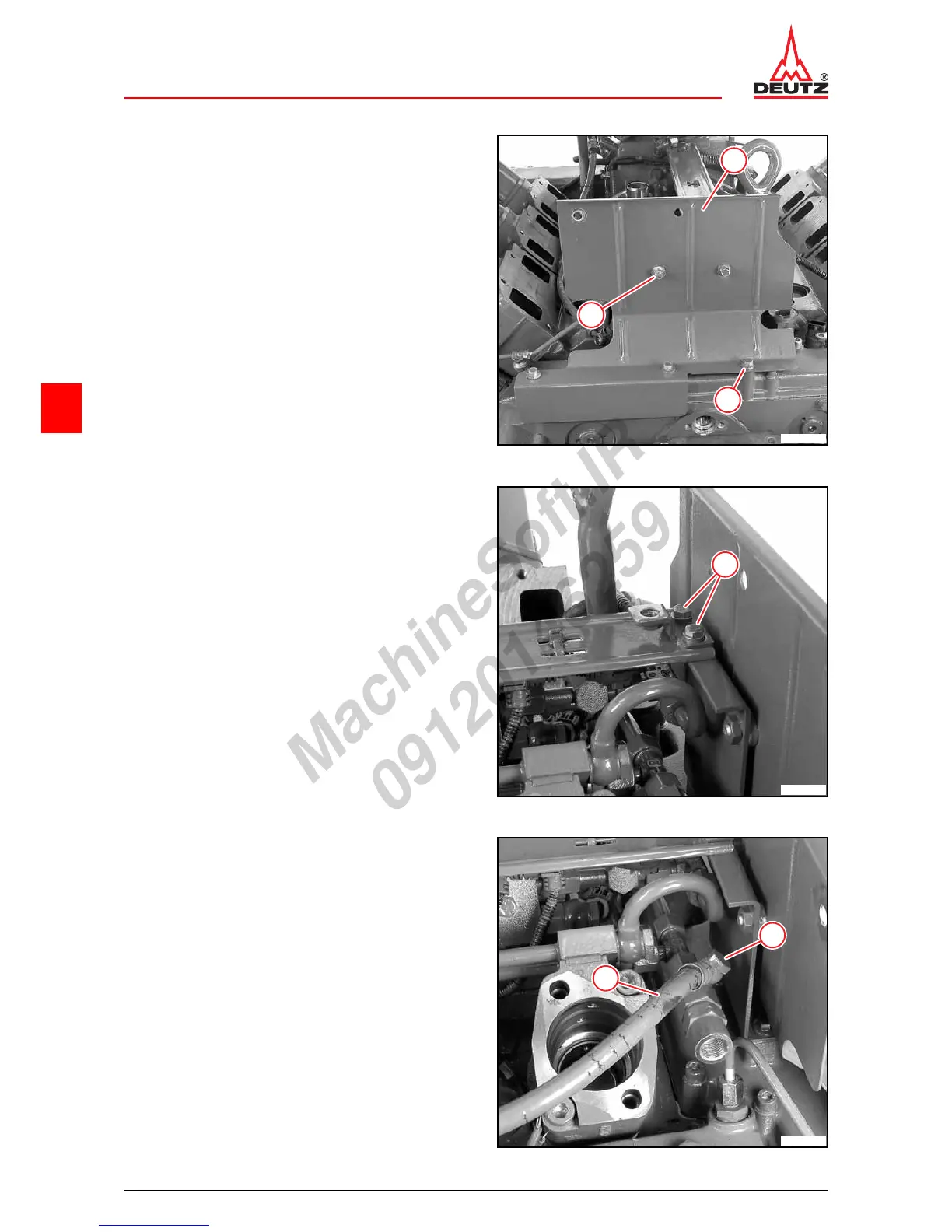

z Mount heat shield (1).
z Insert screws (3) with spacing sleeves.
z Tighten screws (2).
z Tighten screws (2 and 3) alternately.
 A12 071
1
3
2
© 40517-0
z Tighten screws (1).
 A13 094
1
© 40453-0
z Mount new sealing rings.
z Position fuel hose (2).
z Tighten hollow screw (1).
 A12 090
1
2
© 40458-0
