TCD 2015
Speed control
W 05-07-01
© 06/2006 8191-001
4/6
6

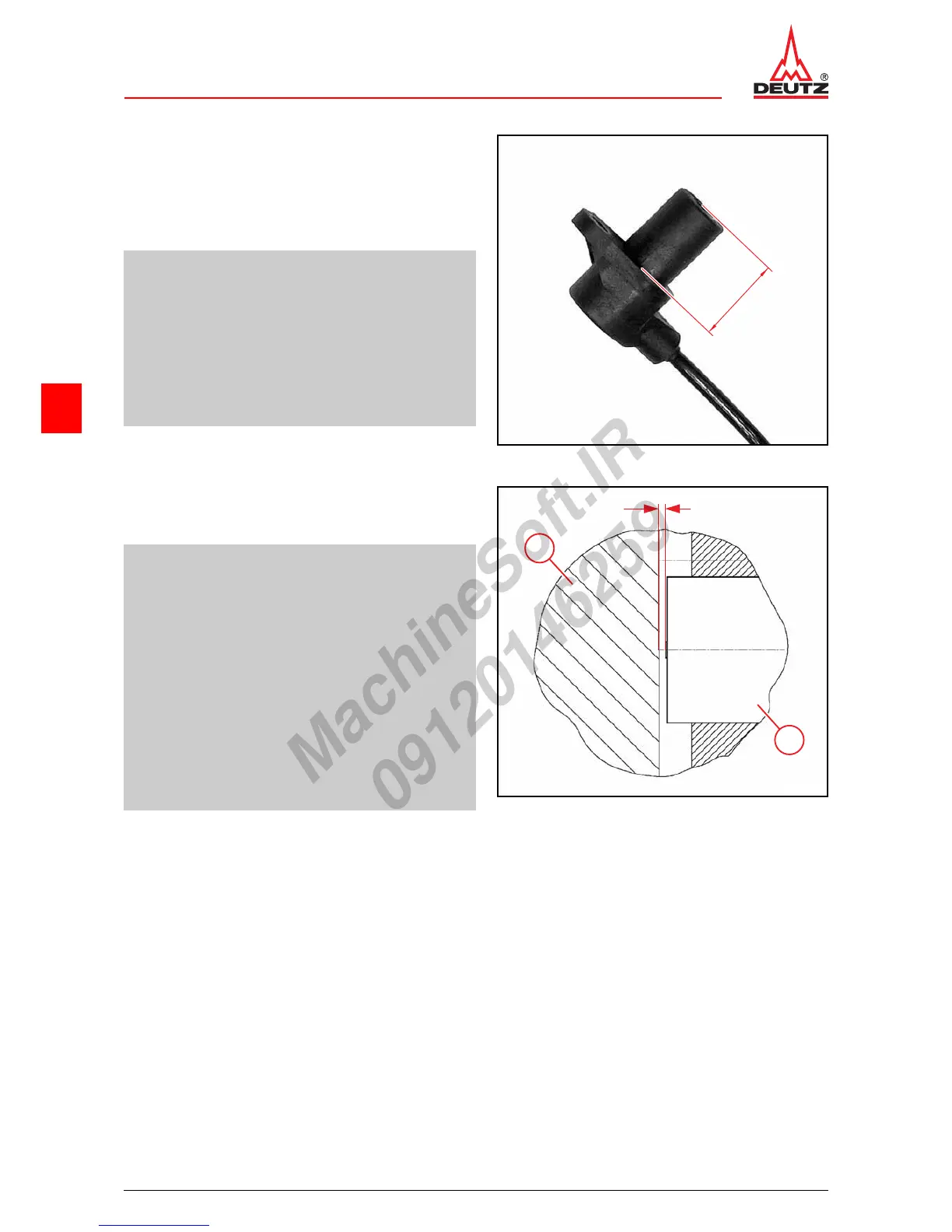

z Measure distance, dimension (b).
24 mm
z Note measured value.
z Calculate difference between dimension (a) and
dimension (b), dimension (y).
Calculation example
Desired: Dimension (y)
Given: Dial gauge adapter dimension = 24.00 mm
Measured: Dimension (a) = dial gauge adapter dimension +
lowest measured value
Dimension (a) = 24.00 mm + 0.49 mm
Dimension (a) = 24.49 mm
Dimension (b) = 24.00 mm
Calculation: Dimension (y) = dimension (a) - dimension (b)
Dimension (y) = 24.49 mm - 24.00 mm
Result: Dimension (y) = 0.49 mm
b
© 45878-1
0,1
0,2
z Determine tightness of the impulse transmitter under
compliance with the permissible distance
dimension (c).
Calculation example
Desired: Compliance with the permissible distance, di-
mension (c)
Gasket
Given: MInimum distance dimension (c1) = 1.00 mm
Dimension (y)
Thickness of gasket = 0.30 mm
Thickness of gasket = 0.50 mm
Measured: -
Calculation: Dimension (c) = minimum
distance dimension (c1) -
dimension (y) + thickness of the gasket
Dimension (c) = 1.00 mm - 0.49 mm + 0.50 mm
Dimension(c)=1.01mm
Result: Dimension (c) corresponds to the permissible di-
stance, therefore a gasket with a thickness of
0.50 mm must be used.
1
2
c
© 45904-0
z Permissible distance (c) between flywheel (1) and
impulse transmitter (2).
P05 91
