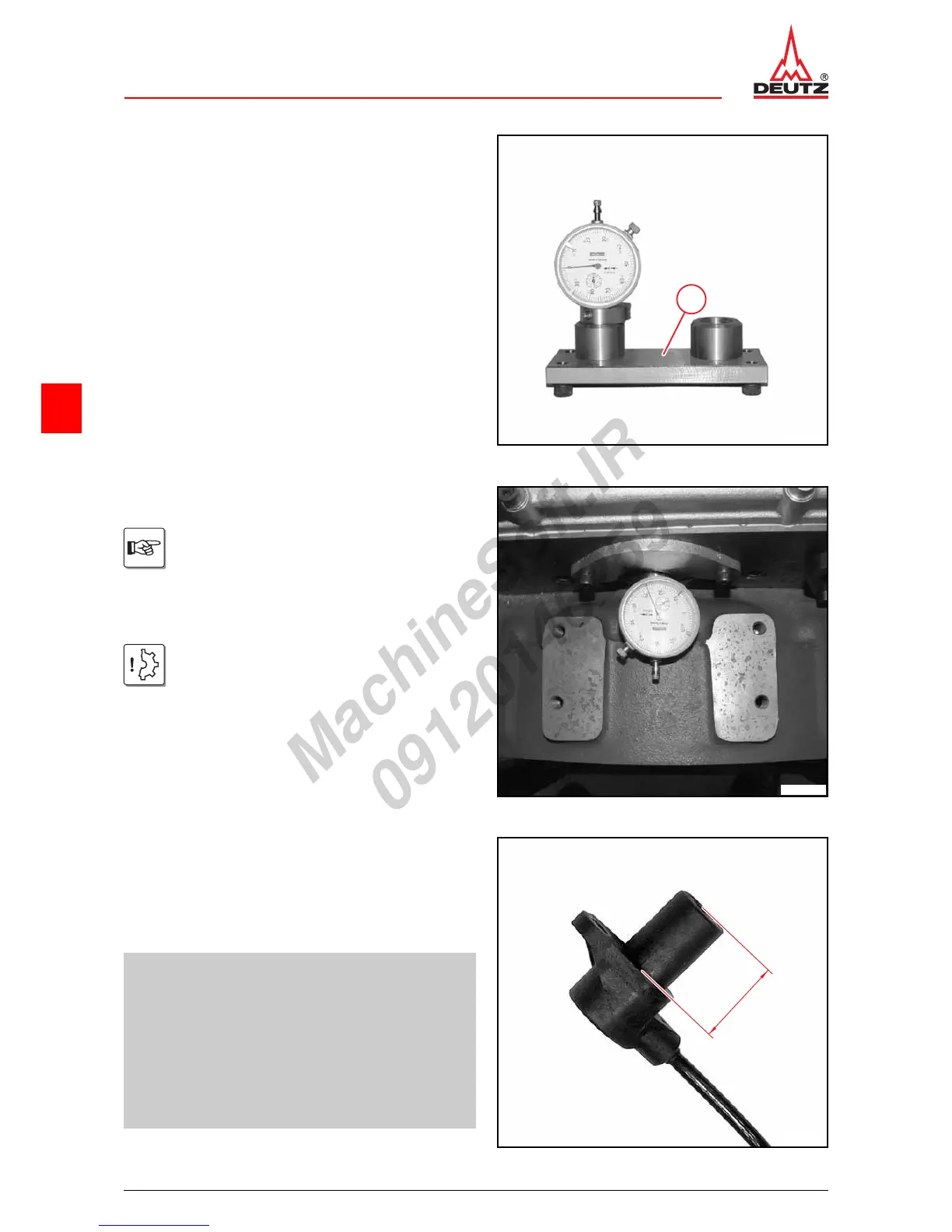

z Insert adapter with dial gauge under pre-tension in
the base plate (1).
z Fix dial gauge in adapter.
z Turn the dial until the pointer points to "0".
1
© 45898-0
z Insert and press in adapter with dial gauge into the
connection housing until it stops.
z Note measured value.
z Make 120° orientation marks on the vibration damp-
er.
z Turn the crankshaft to the next 120° mark in direction
of rotation.
z Note measured value.
z Select lowest measured value of 3 measurements,
dimension (a).
The stylus of the dial gauge must touch the
pin of the camshaft gear.
Attention!
Remove adapter and dial gauge before
turning the crankshaft.
© 45902-0
z Measure distance, dimension (b).
24 mm
z Note measured value.
z Calculate difference between dimension (a) and
dimension (b), dimension (y).
Calculation example
Desired: Dimension (y)
Given: Dial gauge adapter dimension = 24.00 mm
Measured: Dimension (a) = dial gauge adapter dimension +
lowest measured value
Dimension (a) = 24.00 mm + 0.76 mm
Dimension (a) = 24.76 mm
Dimension (b) = 23.90 mm
Calculation: Dimension (y) = dimension (a) - dimension (b)
Dimension (y) = 24.76 mm - 23.90 mm
Result: Dimension(y)=0.86mm
b
© 45878-1
0,1
0,2
