© 06/2006 8192-001
5/8
TCD 2015
Speed control
W 05-07-03
6

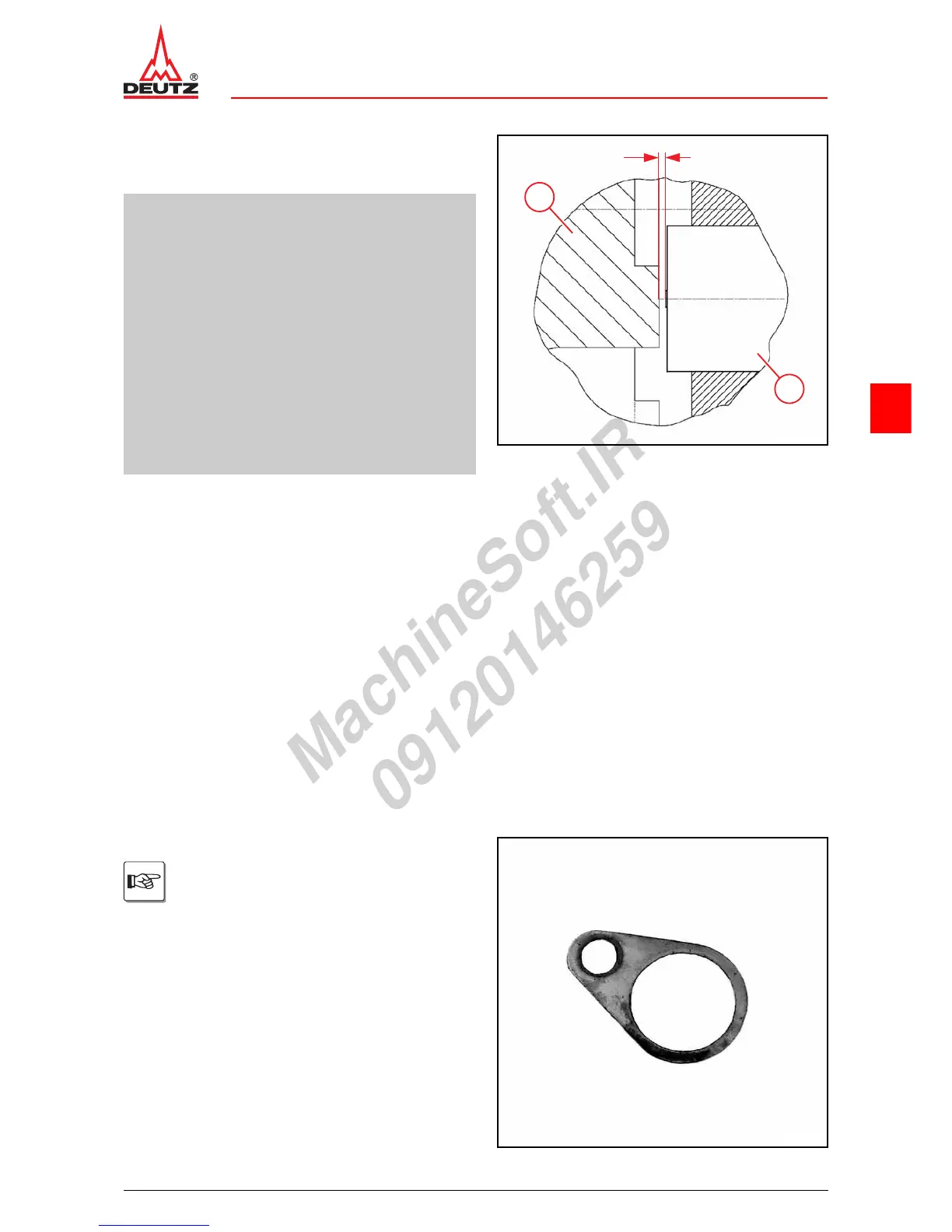

z Determine tightness of the impulse transmitter under
compliance with the permissible distance
dimension (c).
z Permissible distance (c) between camshaft gear
wheel (1) and impulse transmitter (2).
P05 92
Calculation example
Desired: Compliance with the permissible distance, di-
mension (c)
Gasket
Given: Minimum distance dimension (c1) = 0.30 mm
Dimension (y)
Thickness of gasket = 0.30 mm
Thickness of gasket = 0.50 mm
Measured: -
Calculation: Dimension (c) = minimum
distance dimension (c1) -
dimension (y) + thickness of the gasket
Dimension(c)=0.30mm-
0.86 mm + (2x0.50 mm)
Dimension(c)=0.44mm
Result: Dimension (c) corresponds to the permissible di-
stance, therefore two gaskets with a thickness of
0.50 mm must be used.
1
2
c
© 45903-0
z Select new gaskets.
Gaskets are available in thicknesses of 0.3
mm and 0.5 mm.
The correct distance (c) is reached by pla-
cing the appropriate number of gaskets
underneath.
© 45882-0
