TCD 2015
Speed control
W 05-07-03
© 06/2006 8192-001
6/8
6

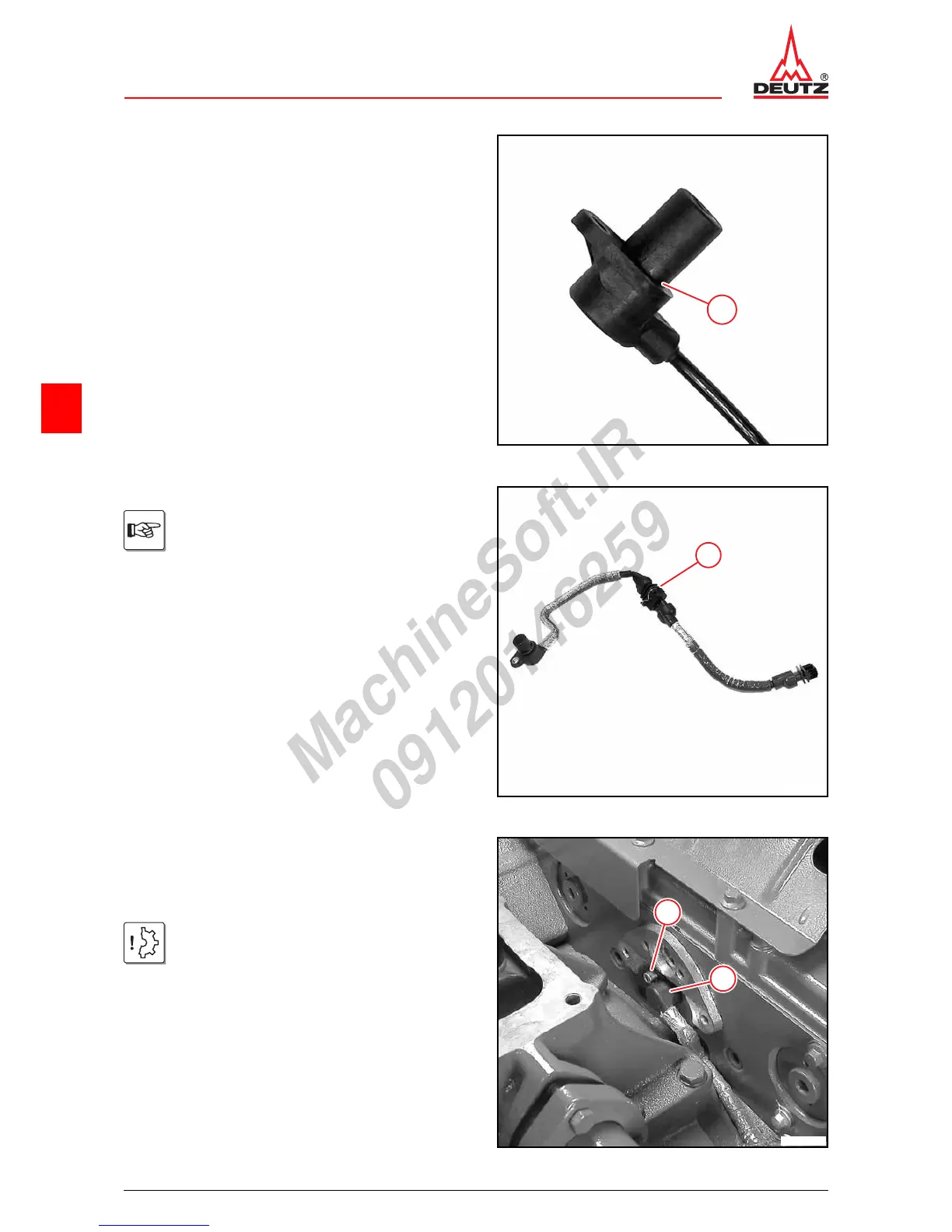

z Remove dial gauge.
z Mount new O-ring (1).
z Coat the O-ring (1) with fitting compound.
1
© 45878-2
z Plug cable plugs (1) together.
z Wrap the cable plug in protective foil.
Ensure that the cables are connected pro-
perly.
1
© 00000-0
z Clean sealing surfaces.
z Mount new gasket(s) according to the determined
distance.
z Press in impulse transmitter (2).
z Tighten screw (1).
A05 012
Attention!
Do not damage the component!
1
2
© 40720-0
