TCD 2015
Exhaust system/Charging
W 06-02-03
© 06/2006 8200-001
2/4
6

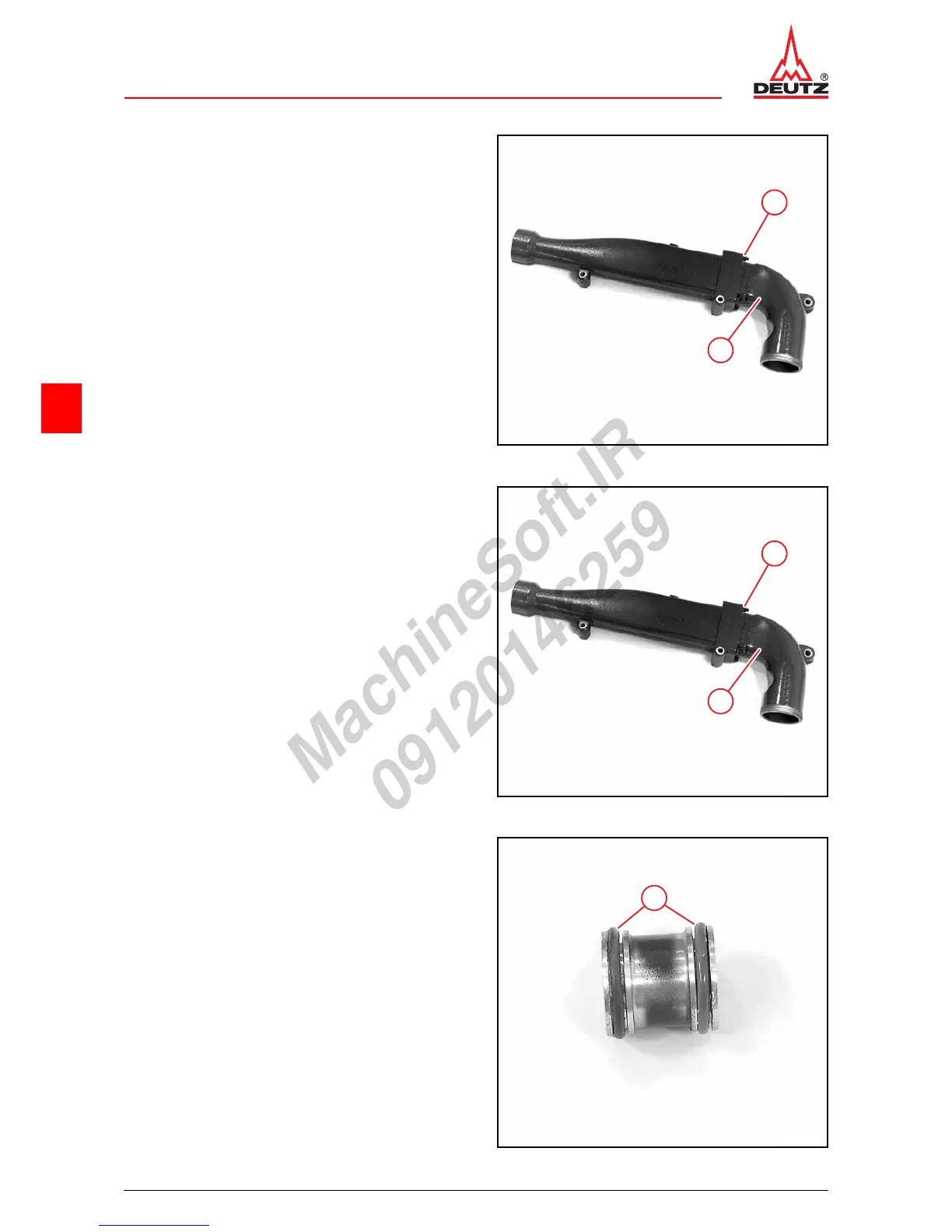

z Unscrew nuts (1).
z Remove washers.
z Remove charge air manifold (2).
z Remove gasket.
z Visually inspect the components.
1
2
© 45403-0
Install charge air line
z Mount new gasket.
z Mount charge air manifold (2).
z Mount washers and screw on nuts.
z Tighten nuts (1).
 A06 046
1
2
© 45403-0
z Mount new O-rings (1).
z Coat the O-rings with fitting compound.
1
© 40767-0
