Deutz TCD 2015 - Page 389

© 06/2006 8200-001
3/4
TCD 2015
Exhaust system/Charging
W 06-02-03
6

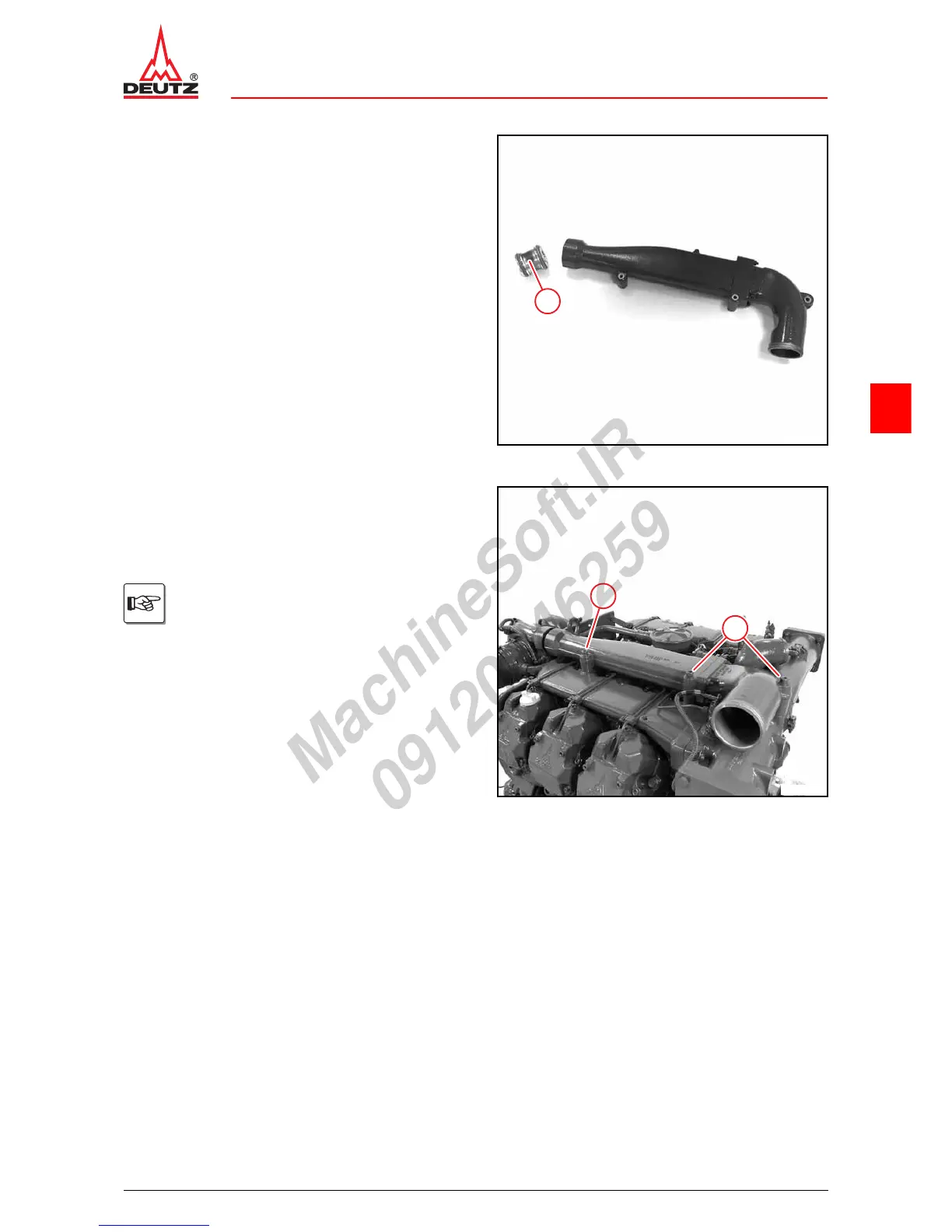

z Insert plug element (1).
1
© 40768-1
z Clean sealing surfaces.
z Mount charge air line.
z Tighten screws .
 A06 030
Screw length:
M10 x 65 mm (1)
M10 x 85 mm (2)
2
1
© 40769-0
