TCD 2015 Railway
Exhaust system/Charging
W 06-02-05
6

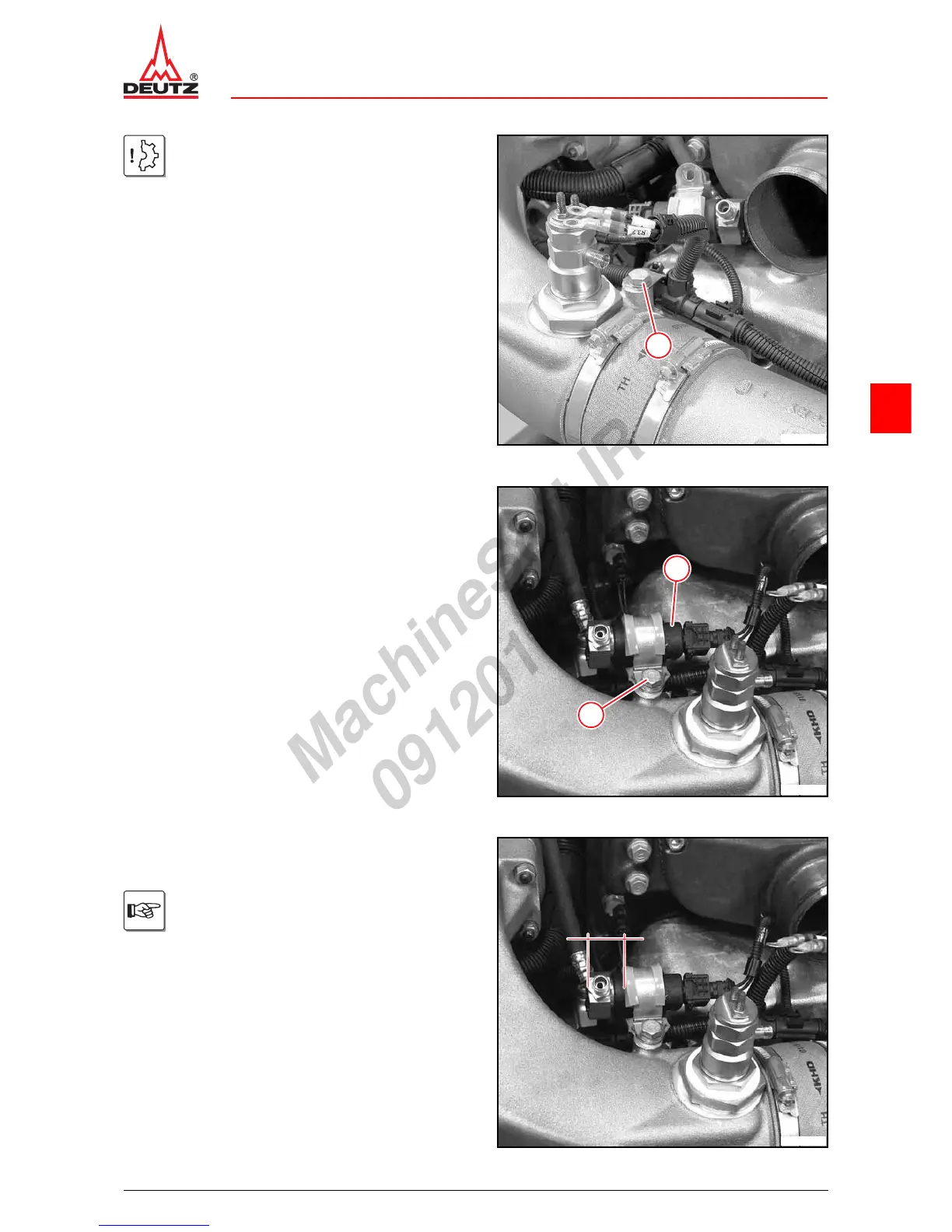

z Tighten screw (1).
 A13 090
Attention!
Lay the cables free from chafing and ten-
sion.
1
© 42418-1
z Mount fuel shut-off valve (2).
z Position pipe clamp.
z Fasten screw (1).
1
2
© 42186-1
z Position fuel shut-off valve.
 P07 91
Note installation dimensions (X).
X
© 45909-0
