Deutz TCD 2015 - Page 408

TCD 2015 Railway
Exhaust system/Charging
W 06-02-05
© 06/2006 8202-001
8/10
6

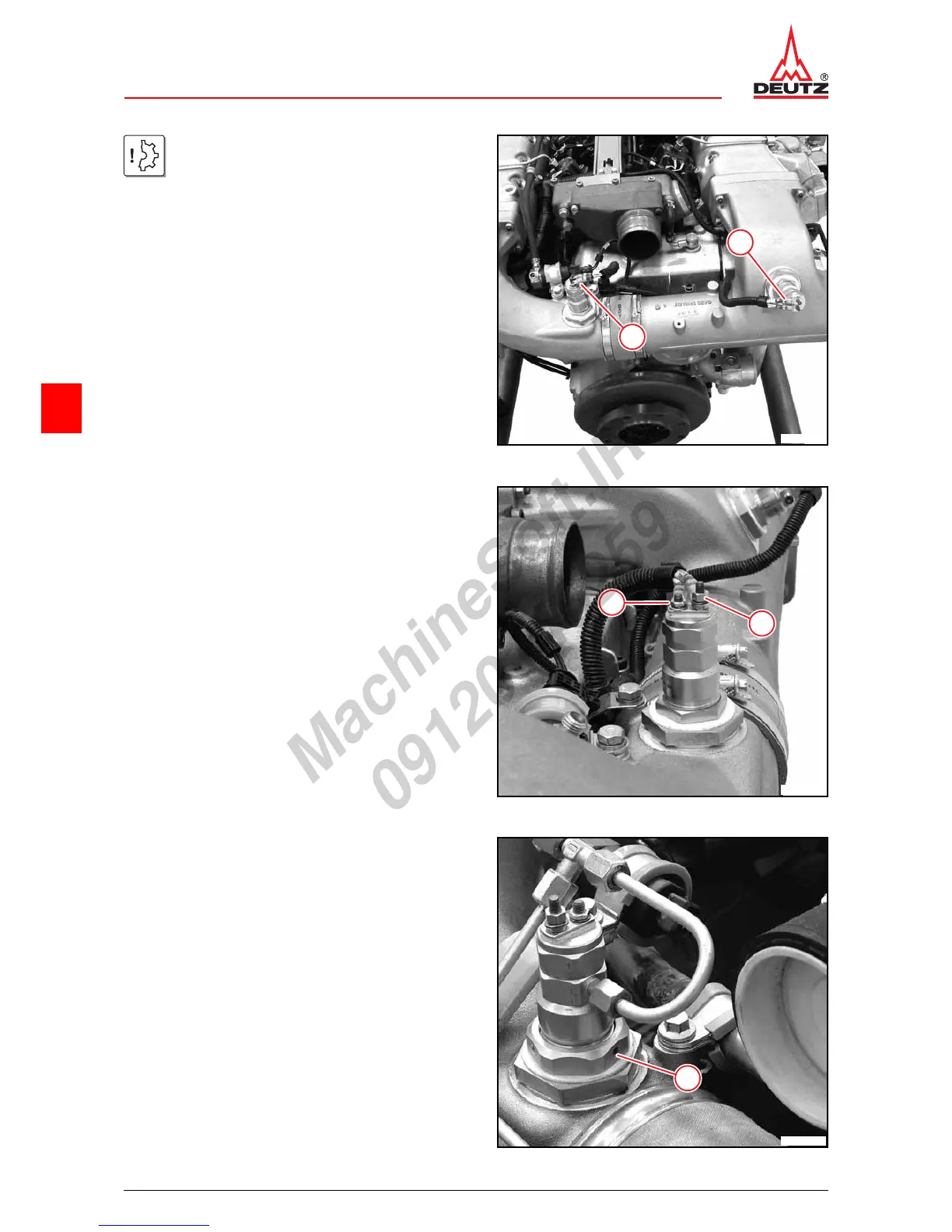

z Connect plus cable (R3.1) to flame glow plug (1).
z Connect plus cable (R3.2) to flame glow plug (2).
z Mount washers.
z Screw on nuts.
Attention!
Note assignment and polarity of the electri-
cal connections!
1
2
© 45928-0
z Tighten nuts (1).
 A13 035
z Install fuel pipes (flame glow plugs), (Railway).
 W 07-01-04
1
1
© 42185-2
z Connect ground cable.
z Mount spring washer.
z Tighten screw (1).
 A07 058
1
© 45907-0
