Deutz TCD 2015 - Page 423

© 06/2006 8204-001
5/6
TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
6

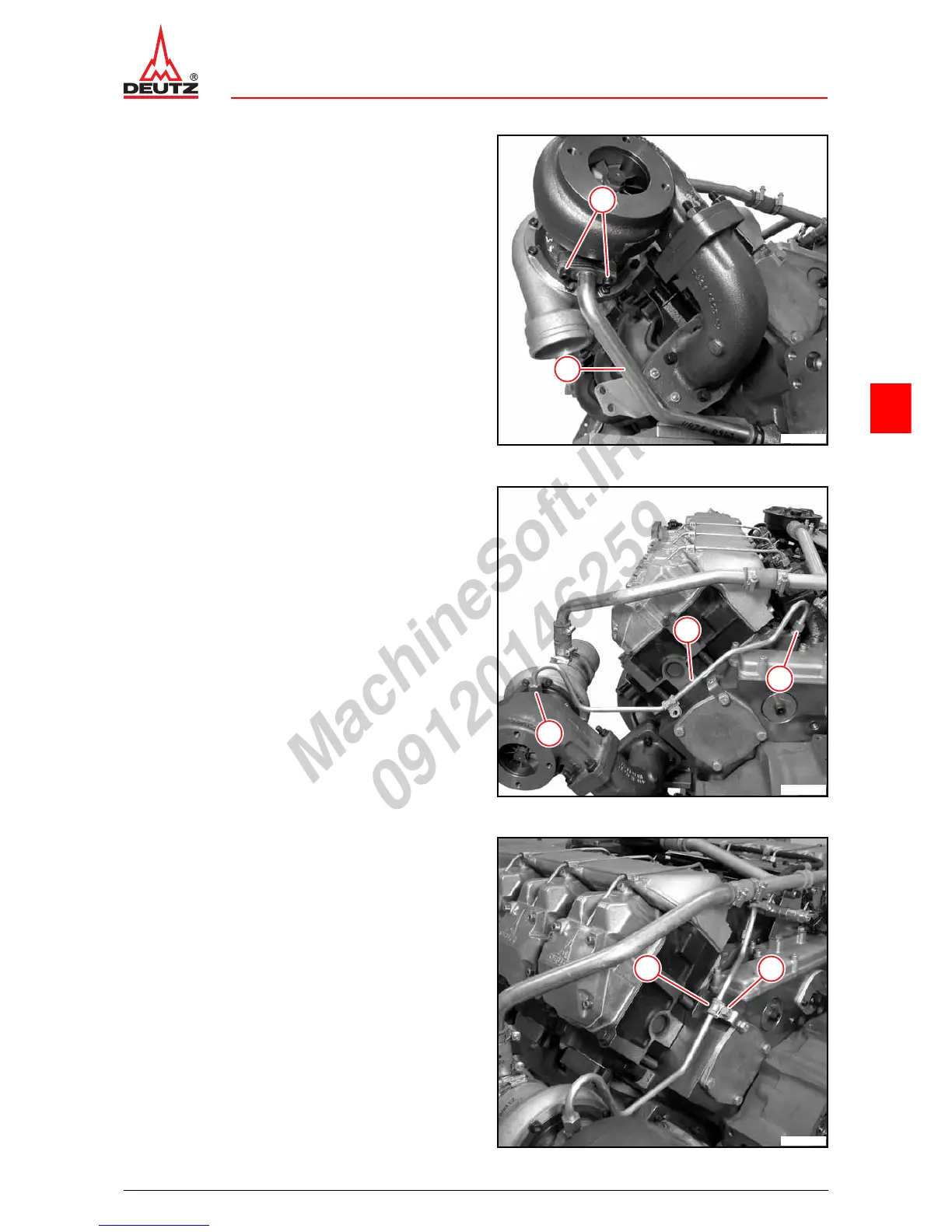

z Mount new gasket.
z Mount oil return pipe (2).
z Tighten screws (1).
 A08 044
1
2
© 42050-1
z Mount lubricating oil pipe (2).
z Screw on union nuts (1).
 A12 082
1
1
2
© 42049-1
z Position pipe clamp (2).
z Tighten screw (1).
 A08 045
1
2
© 42048-1
