Deutz TCD 2015 - Page 422

TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
© 06/2006 8204-001
4/6
6

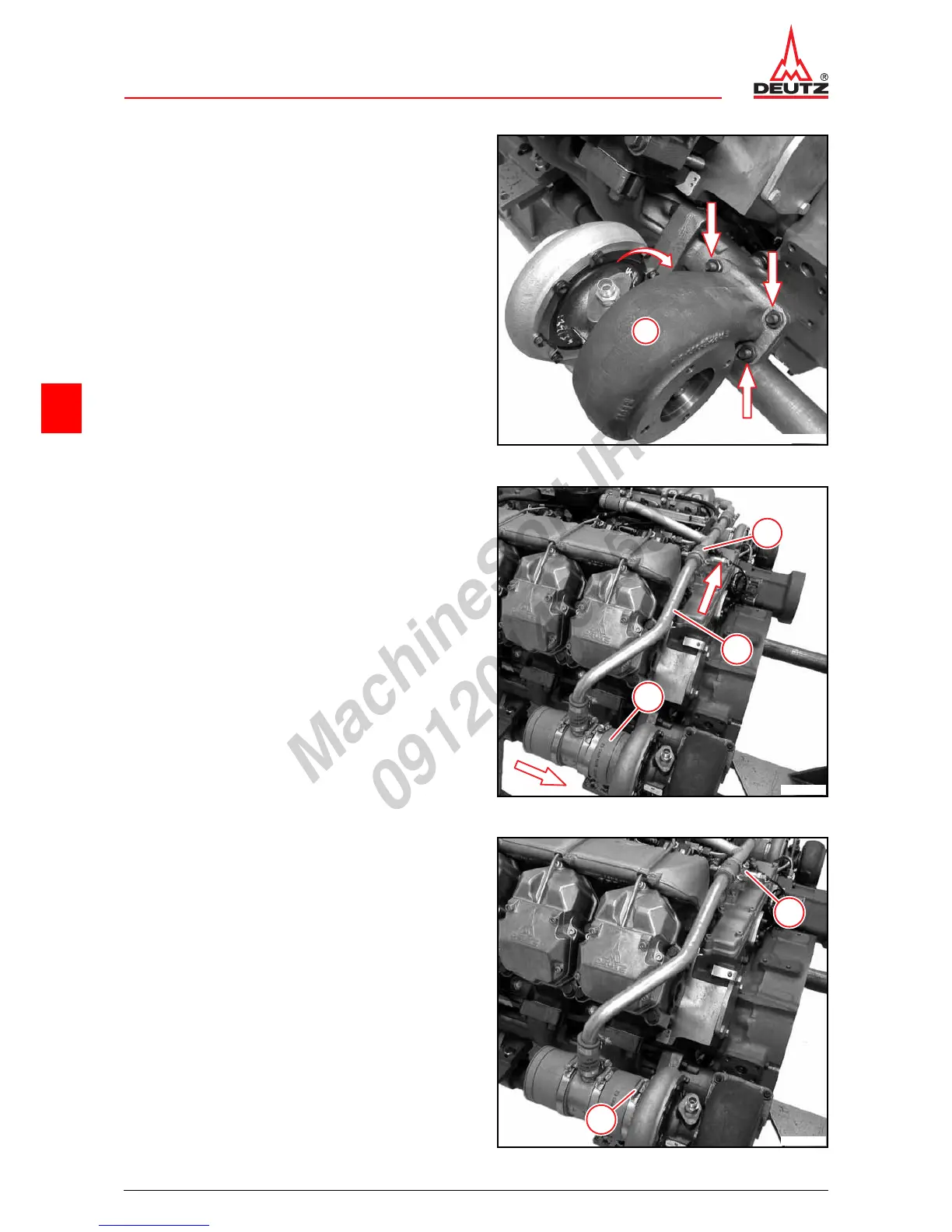

z Clean sealing surfaces.
z Mount turbocharger (1).
z Tighten nuts (arrows).
 A06 020
1
© 42053-1
z Mount breather pipe (3).
z Plug in breather pipe (2).
z Plug in the tubing connection (1).
1
2
3
© 42052-3
z Position hose clip (1).
z Tighten hose clip (1).
 A03 070
z Position hose clip (2).
z Tighten hose clip (2).
 A06 024
2
1
© 42051-2
