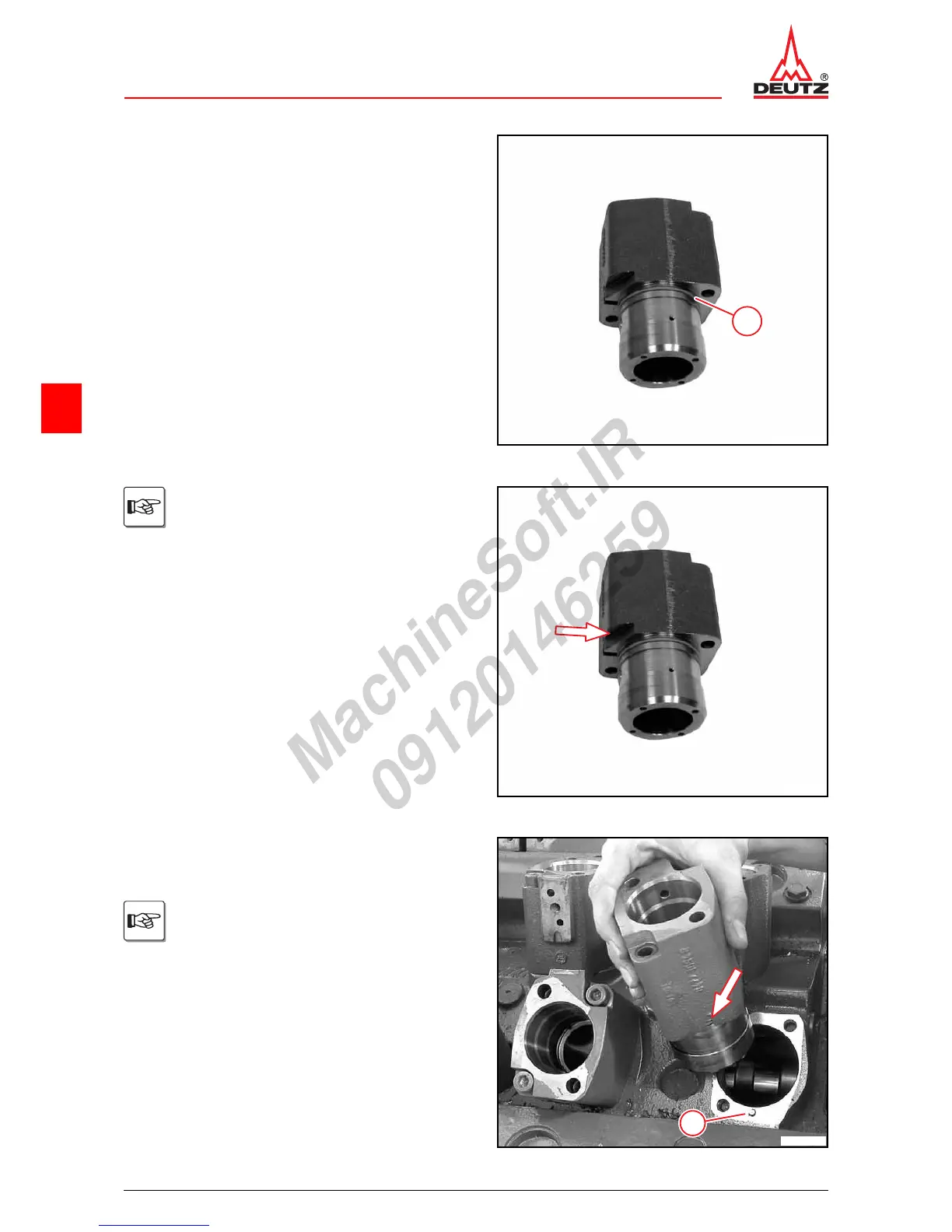

Installing injection pump housing
z Clean contact surfaces.
z Mount new O-ring (1).
1
© 42159-2
The injection pump housings differ.
Mount the injection pump housing with the
bevel (arrow) on the B-bank.
© 42160-1
z Oil the shank of the injection pump housing lightly.
z Press the injection pump housing into the stop in the
crankcase.
Note cylinder assignment.
The pilot pin (1) must lock in
groove (arrow).
1
© 45389-0
