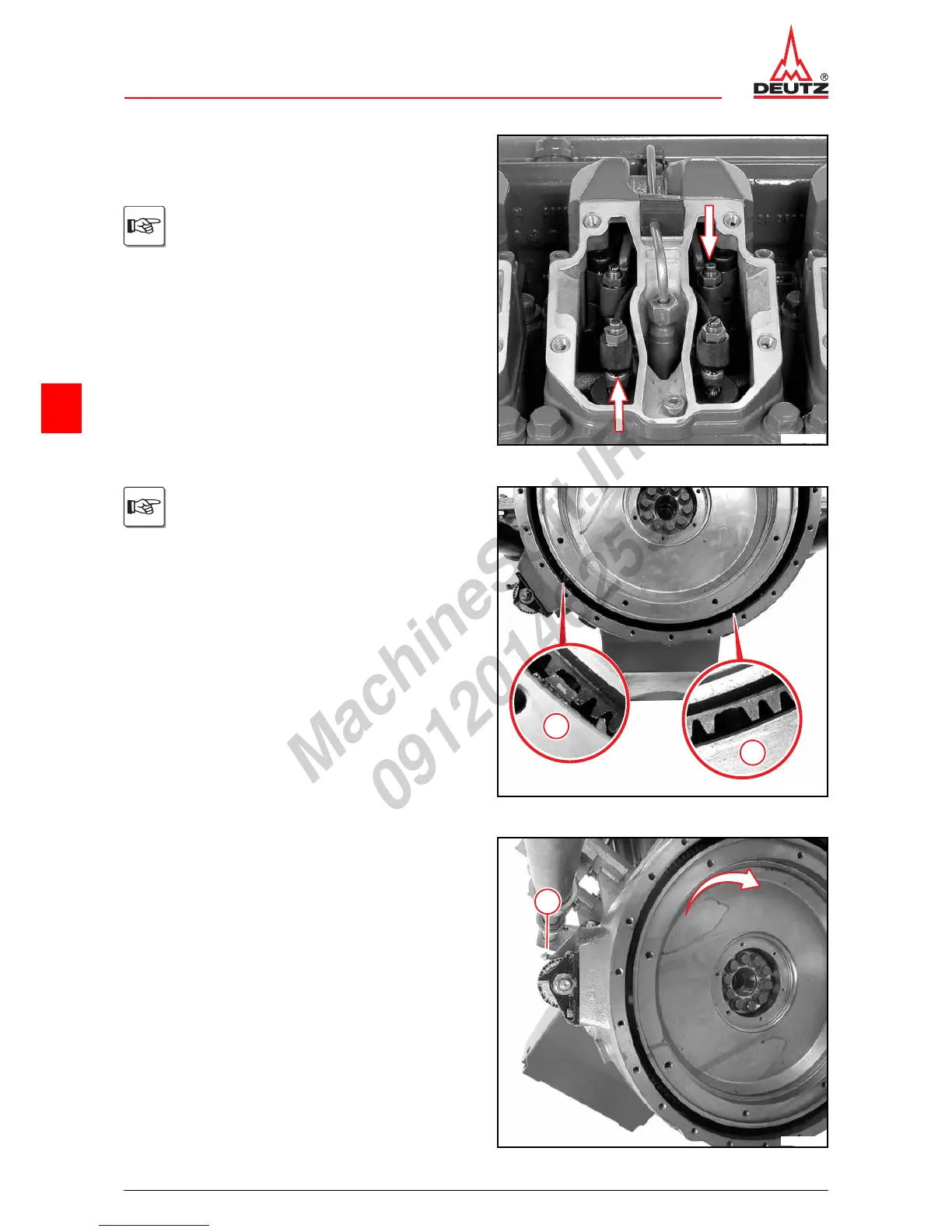

z Turn over crankshaft until the valve overlap is
achieved on cylinder no. B2.
T01 63
Valve overlap means:
Inlet valves begin to open and exhaust val-
ves close.
Observe valve clearance setting diagram.
© 40465-0
In case of valve overlap of cylinder no. B2:
The locking pin of the turning gear must
snap into the tooth notch (1) of the starter
ring gear.
The second tooth notch (2) must face the
B-bank.
1
2
© 40466-0
z Pull locking pin (1).
z Turn crankshaft in the opposite direction to the en-
gine rotation (arrow) a ¼ turn with the turning gear.
1
© 40501-0
