TCD 2015
Fuel system
W 07-07-02
© 06/2006 8220-001
4/6
6

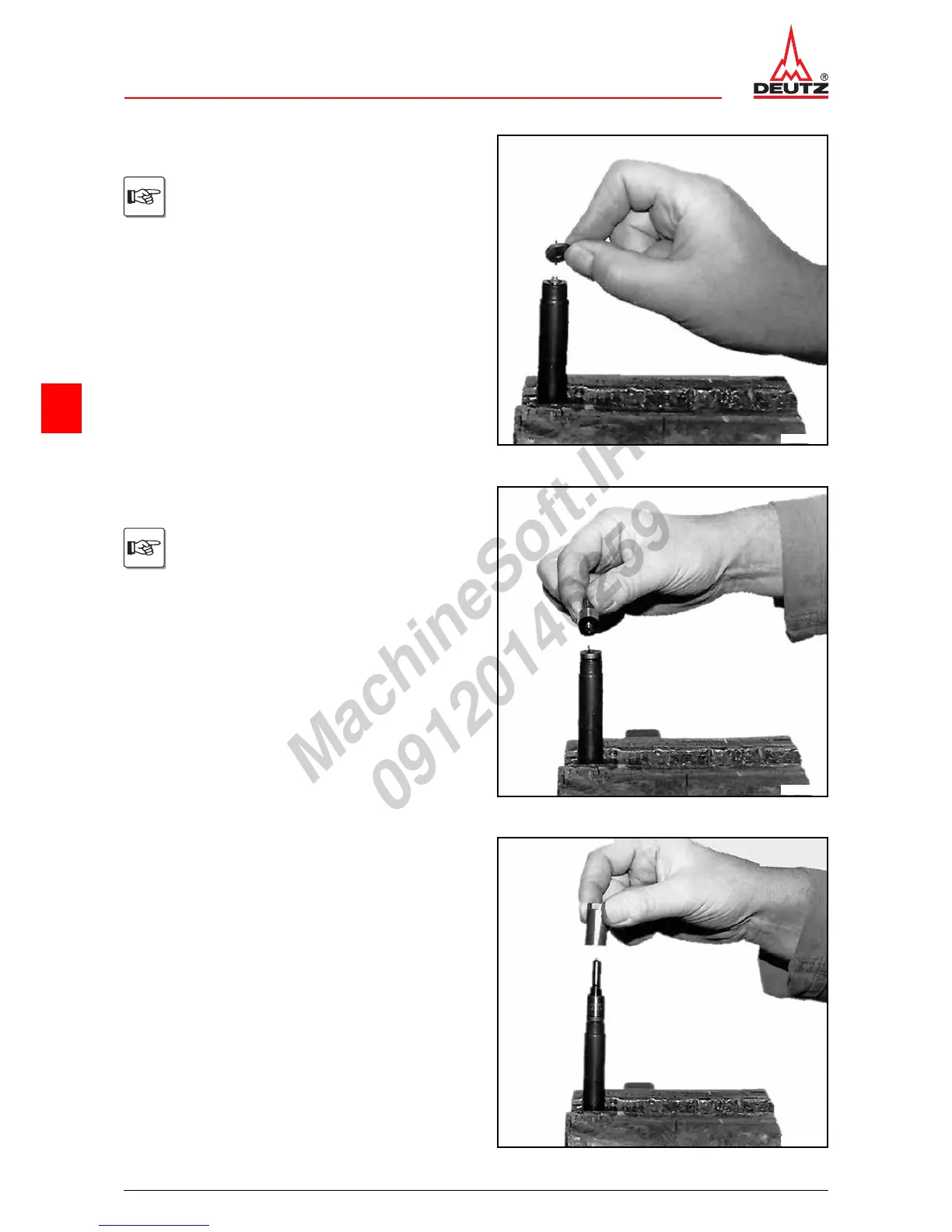

z Insert intermediate piece with the centering pins in
the bores of the nozzle holder.
The countersink must face the thrust bolt.
© 33909-2
z Mount the injection nozzle with the centre bores on
the centering pins of the intermediate piece.
The nozzle needle may not fall out of the
nozzle body.
© 33910-2
z Screw on the nozzle cap nut.
© 33911-2
