Deutz TCD 2015 - Page 554

TCD 2015 Railway
Fuel system
W 07-10-06
© 06/2006 8224-001
4/6
6

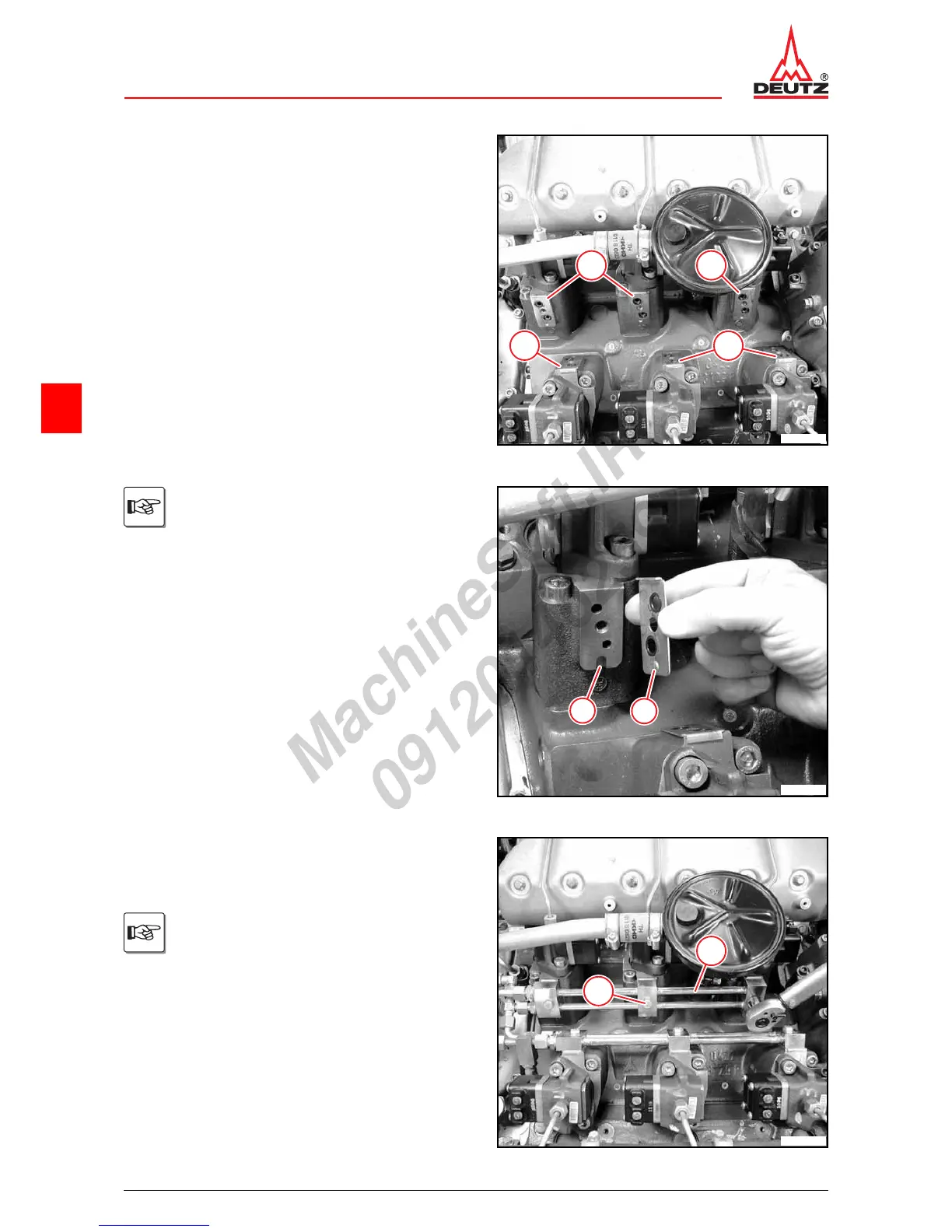

Installing fuel pipes
z Mount new gaskets (1).
1
1
1
1
© 42114-2
Note assignment!
The lug (1) must lock in groove (2).
1
2
© 42115-1
z Mount fuel pipes (2).
z Tighten all screws (1).
 A07 015
Do not move the gaskets when mounting
the fuel pipes.
1
2
