© 06/2006 8224-001
5/6
TCD 2015 Railway
Fuel system
W 07-10-06
6

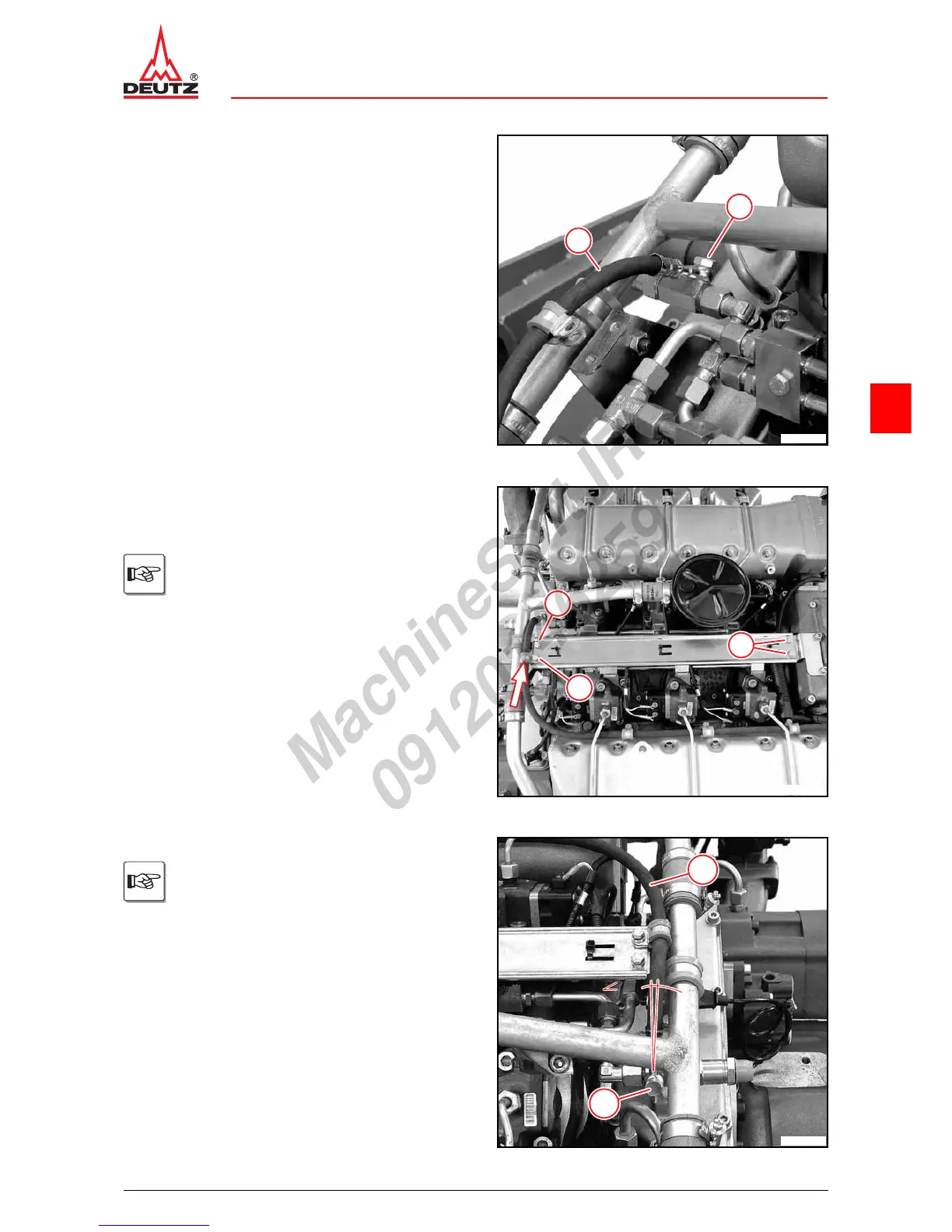

z Mount hose line (2).
z Mount new sealing rings.
z Screw on hollow screw (1).
1
2
© 42112-1
z Position cable harness rail with cable harness.
z Position pipe clamp (arrow).
z Fasten screws.
z Tighten screws .
A13 094
Note different screw lengths:
M6 x 12 mm (1)
M6 x 16 mm (2)
1
1
2
© 42111-1
z Position hose line (1).
z Tighten hollow screw (2).
A12 090
Observe installation angle dimension X =
10°.
2
1
1
