© 06/2006 8226-001
5/8
TCD 2015
Fuel system
W 07-13-01
6

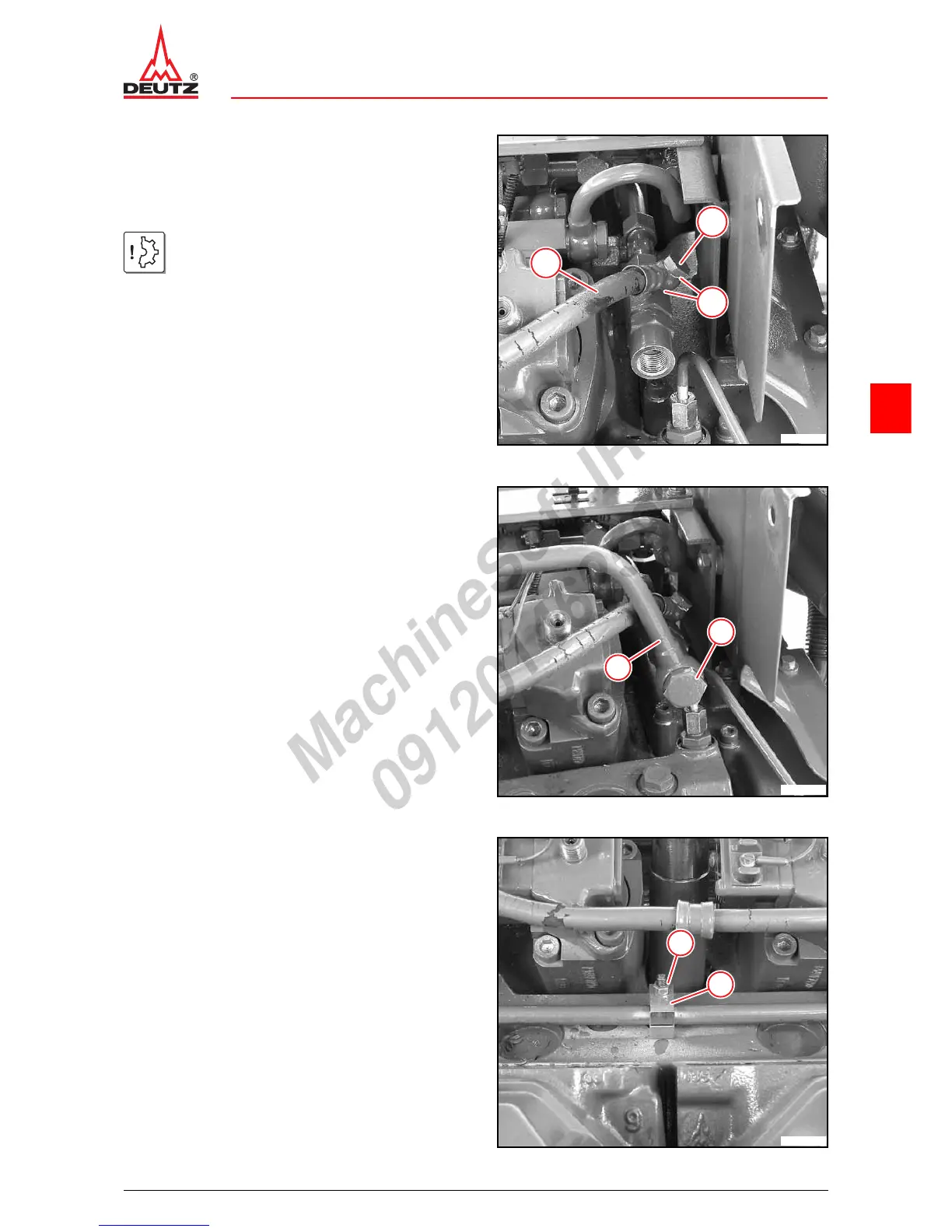

z Position hose line (1).
z Mount sealing rings (3).
z Tighten hollow screw (2).
A12 090
Attention!
Lay the hose pipe free from chafing and
tension.
3
2
1
© 40948-1
z Mount new sealing rings.
z Mount fuel pipe (2).
z Screw on hollow screw (1).
1
2
© 40522-0
z Oil the thread lightly.
z Mount holder (2).
z Screw on nut (1).
1
2
© 40521-0
