TCD 2015 Railway
Lube oil system
W 08-04-07
© 06/2006 8231-001
6/10
6

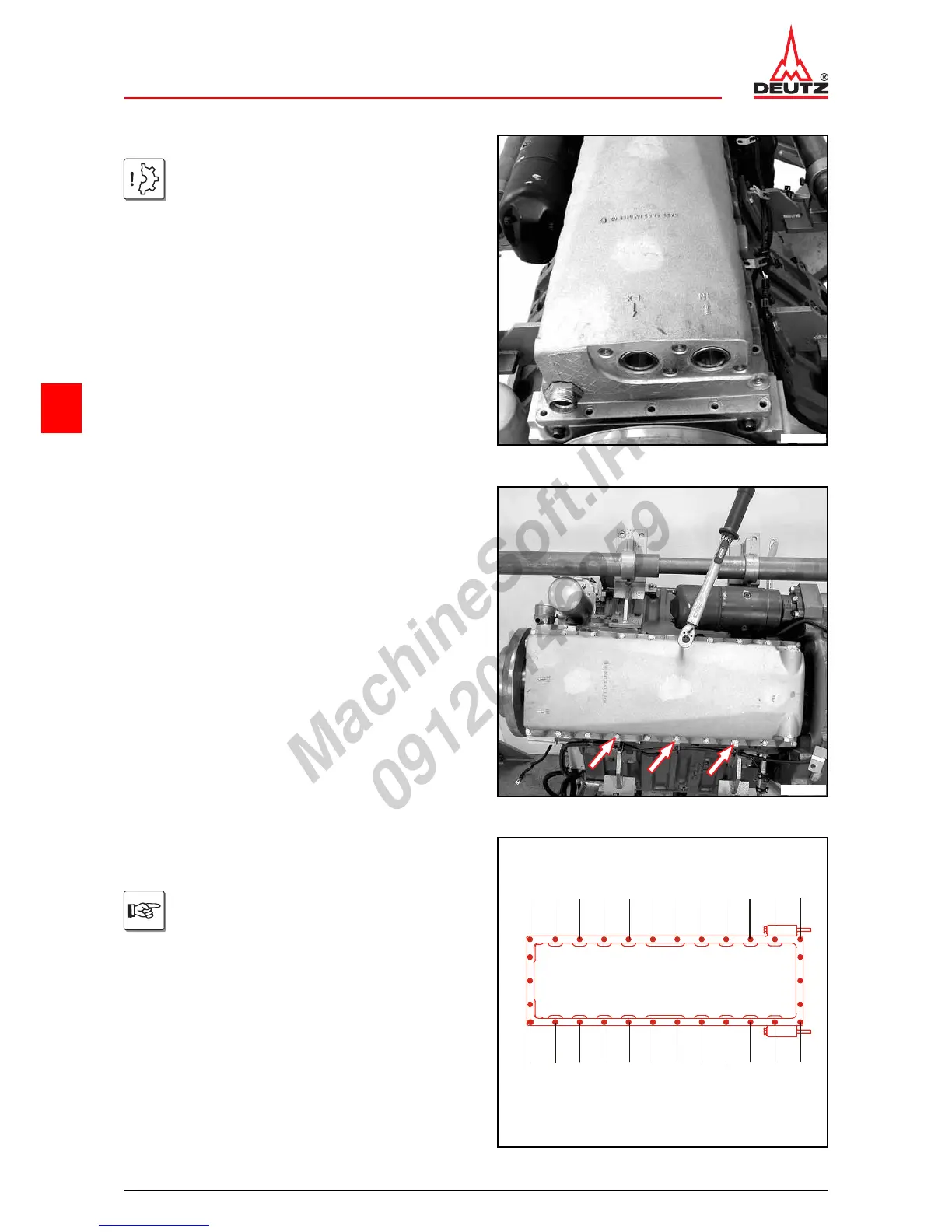

z Align lubricating oil pan to crankcase.
Attention!
Do not move gasket/packing compound.
Do not move the gasket when mounting
the lubricating oil pan.
© 45865-0
z Mount holder (arrows).
z Position cable.
z Tighten screws alternately.
© 42447-1
z Tighten all screws.
A03 030
See graphic for tightening sequence.
26
28
30
27
25
29
24 20 16 12 8 4 1 5 9 13 17 21
23 19 15 11 7 3 2 6 10 14 18 22
© 45421-1
